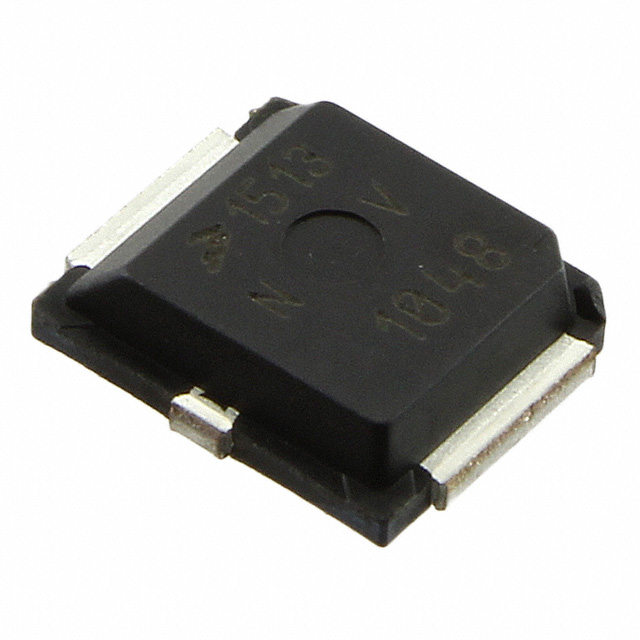

MRF1511NT1

Manufacturer :

NXP Semiconductors

Product Category :

Transistors - FETs, MOSFETs - RF

Terminal Finish :

Matte Tin (Sn)

Number of Terminations :

4

Operating Temperature (Max) :

150°C

Drain Current-Max (Abs) (ID) :

4A

Published :

2009

Configuration :

Single

Transistor Type :

LDMOS

Factory Lead Time :

10 Weeks

Case Connection :

SOURCE

Polarity/Channel Type :

N-Channel

Frequency :

175MHz

Qualification Status :

Not Qualified

Package / Case :

PLD-1.5

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

260

JESD-30 Code :

R-PQSO-N4

Power - Output :

8W

Current Rating (Amps) :

4A

Time@Peak Reflow Temperature-Max (s) :

40

Voltage - Rated :

40V

RoHS Status :

ROHS3 Compliant

Power Dissipation-Max (Abs) :

62.5W

JESD-609 Code :

e3

Base Part Number :

MRF1511

Operating Mode :

ENHANCEMENT MODE

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Transistor Application :

AMPLIFIER

Packaging :

Tape and Reel (TR)

Transistor Element Material :

SILICON

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Current - Test :

150mA

Number of Elements :

1

Gain :

13dB

Voltage - Test :

7.5V

Surface Mount :

yes

Terminal Form :

NO LEAD

HTS Code :

8541.29.00.75

Terminal Position :

QUAD

DS Breakdown Voltage-Min :

40V
