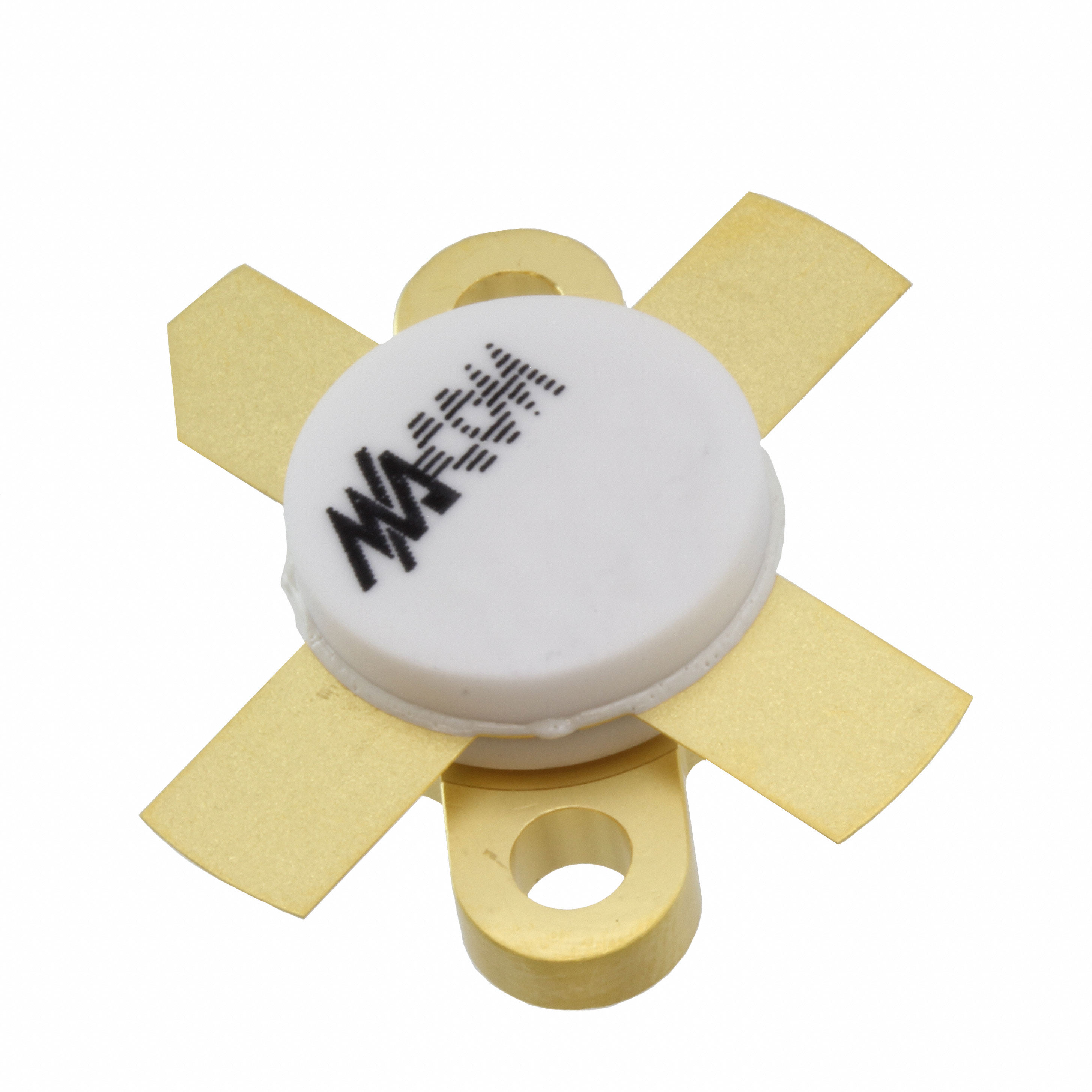

MRF151

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

ECCN Code :

EAR99

Transistor Type :

N-Channel

Power - Output :

150W

Additional Feature :

High Reliability

Voltage - Test :

50V

Number of Pins :

4

Terminal Position :

Radial

Min Operating Temperature :

-65°C

Mount :

Screw

Continuous Drain Current (ID) :

16A

Element Configuration :

Single

Package / Case :

P-244

Published :

2009

Packaging :

Tray

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Max Power Dissipation :

416W

Transistor Application :

AMPLIFIER

Gain :

13dB ~ 22dB

Terminal Form :

Flat

Pin Count :

4

Number of Elements :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

16A

Gate to Source Voltage (Vgs) :

40V

Radiation Hardening :

No

Number of Terminations :

4

Drain to Source Voltage (Vdss) :

125V

RoHS Status :

ROHS3 Compliant

Operating Mode :

ENHANCEMENT MODE

Factory Lead Time :

14 Weeks

Current - Test :

250mA

Frequency :

30MHz~175MHz

Max Operating Temperature :

200°C
