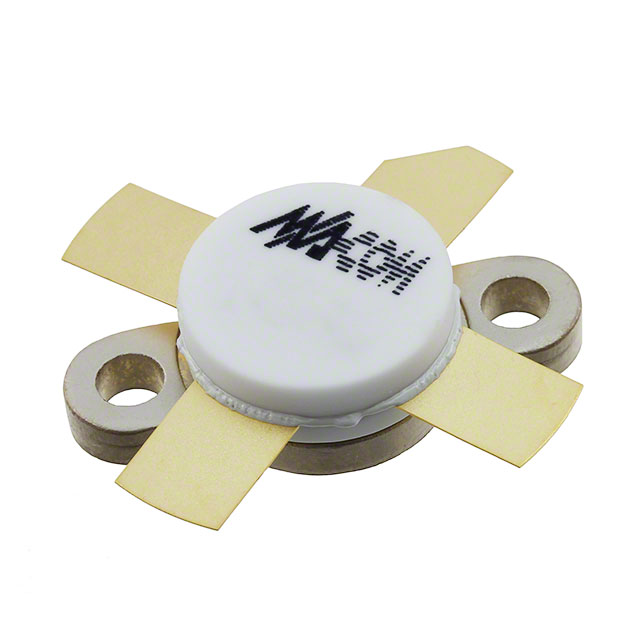

MRF140

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Drain to Source Breakdown Voltage :

65V

Lead Free :

Lead Free

Configuration :

Single

Power - Output :

150W

Number of Terminations :

4

Gain :

15 dB

Pbfree Code :

yes

Current - Test :

250mA

Voltage - Rated :

65V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Test :

28V

Terminal Form :

Flat

Terminal Position :

Radial

Polarity/Channel Type :

N-Channel

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Pin Count :

4

Transistor Application :

AMPLIFIER

Gate to Source Voltage (Vgs) :

40V

Frequency :

150MHz

Qualification Status :

Not Qualified

Operating Temperature (Max) :

200°C

Number of Elements :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Transistor Element Material :

SILICON

Continuous Drain Current (ID) :

16A

Power Dissipation-Max (Abs) :

300W

Operating Mode :

ENHANCEMENT MODE

RoHS Status :

RoHS Compliant

Number of Pins :

4

Mount :

Screw

ECCN Code :

EAR99

Current Rating :

16A
