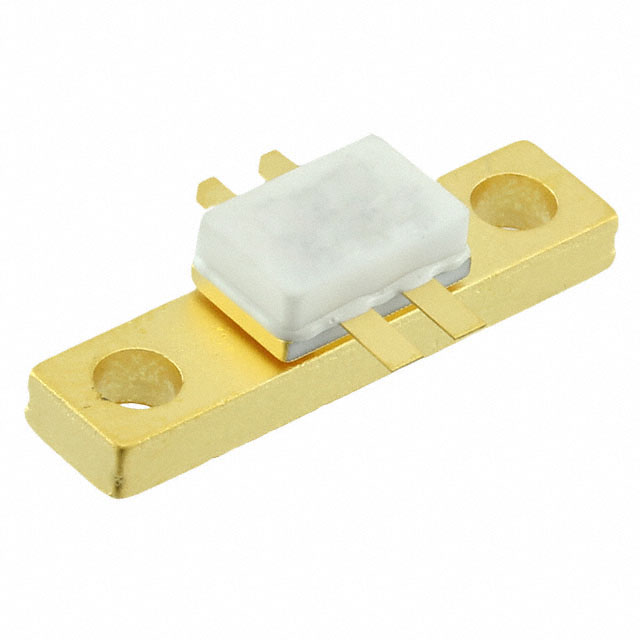

MRF136Y

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Surface Mount :

yes

Operating Mode :

ENHANCEMENT MODE

Package :

Tray

JESD-30 Code :

R-CDFM-F4

Polarity/Channel Type :

N-Channel

Terminal Position :

Dual

Drain Current-Max (Abs) (ID) :

5 A

Manufacturer :

MACOM

Reach Compliance Code :

Compliant

Power - Output :

30W

Product Category :

RF MOSFET Transistors

Transistor Type :

N-Channel

Transistor Element Material :

SILICON

Technology :

Si

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Product Status :

Active

Number of Elements :

2

Noise Figure :

1dB

Terminal Form :

Flat

Frequency :

400MHz

Current Rating (Amps) :

5A

Number of Terminals :

4

Power Dissipation-Max (Abs) :

100 W

Package Shape :

RECTANGULAR

Product Type :

RF MOSFET Transistors

ECCN Code :

EAR99

Case Connection :

SOURCE

Brand :

MACOM

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Series :

-

Pbfree Code :

yes

DS Breakdown Voltage-Min :

65 V

Supplier Device Package :

319B-02, Style 1

Highest Frequency Band :

ULTRA HIGH FREQUENCY BAND

Configuration :

COMMON SOURCE, 2 ELEMENTS

Current - Test :

25 mA

Qualification Status :

Not Qualified

Pin Count :

4

Voltage - Rated :

65 V

Package / Case :

319B-02

Transistor Application :

AMPLIFIER

Gain :

14dB

Voltage - Test :

28 V

Subcategory :

MOSFETs

Base Product Number :

MRF136

RoHS :

Details
