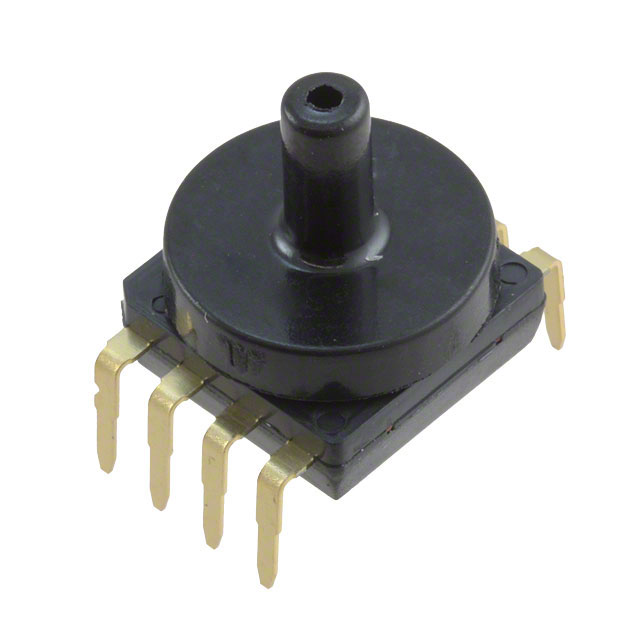

MPXV5010GC7U

Manufacturer :

NXP Semiconductors

Product Category :

Pressure Sensors, Transducers

Package / Case :

8-DIP (0.550, 13.97mm), Top Port

Moisture Sensitivity Level (MSL) :

Not Applicable

Accuracy :

±5%

Body Height :

12.95mm

Housing :

Plastic

Termination Style :

PC Pin

Pressure Range-Max :

1.45 PSI

Pressure Sensing Mode :

Gage

Mounting Feature :

THROUGH HOLE MOUNT

Port Size :

Male - 0.13 3.17mm Tube

Linearity :

5 %

Sensitivity (mV/V) :

450 mV/V

Factory Lead Time :

12 Weeks

Pressure Type :

Vented Gauge

Published :

1998

Output :

0.2 V ~ 4.7 V

Operating Pressure :

1.45PSI (10kPa)

Offset-Nom :

0.20V

Response Time :

1000 μs

Output Type :

Analog Voltage

Port Style :

Barbless

RoHS Status :

ROHS3 Compliant

Body Length or Diameter :

10.66mm

Surface Mount :

No

Sensors/Transducers Type :

PRESSURE SENSOR,PEIZORESISTIVE

HTS Code :

8542.31.00.01

Feature :

Temperature Compensated

Operating Temperature :

-40°C~125°C

Applications :

Board Mount

Series :

MPXV5010

Voltage - Supply :

4.75V~5.25V

Body Breadth :

10.66 mm

ECCN Code :

EAR99

Maximum Pressure :

5.8PSI (40kPa)
