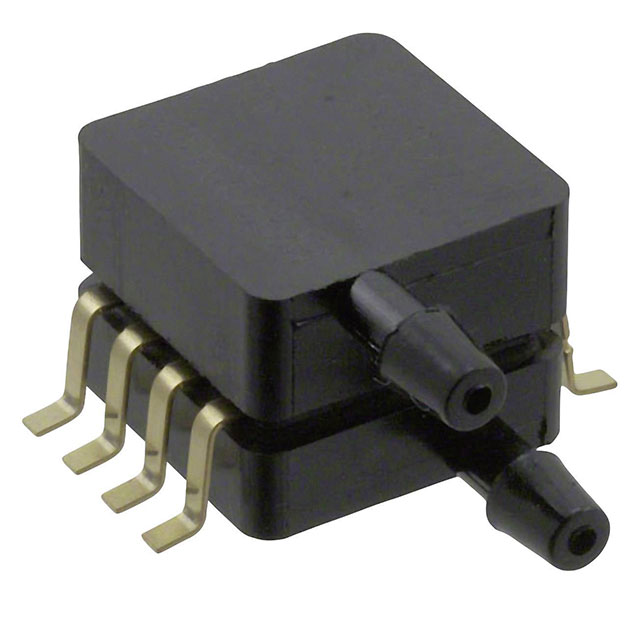

MPXV2202DPT1
Or copy the link below:
- Mfr.Part #
- MPXV2202DPT1
- Manufacturer
- NXP Semiconductors
- Package / Case
- 8-SMD, Gull Wing, Dual Ports, Same Side
- Datasheet
- Download
- Description
- SENSOR PRESSURE DIFF DUAL 8SOP
- Stock
- 139
- In Stock ：
- 139
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NXP Semiconductors
- Product Category :
- Pressure Sensors, Transducers
- Maximum Pressure :
- 58.02PSI (400kPa)
- Output Type :
- Wheatstone Bridge
- Operating Temperature :
- -40°C~125°C
- Packaging :
- Tape and Reel (TR)
- Series :
- MPX2202
- Published :
- 1998
- ECCN Code :
- EAR99
- Feature :
- Temperature Compensated
- Sensors/Transducers Type :
- PRESSURE SENSOR,PEIZORESISTIVE
- Output :
- 0 mV ~ 40 mV (10V)
- Applications :
- Board Mount
- Package / Case :
- 8-SMD, Gull Wing, Dual Ports, Same Side
- Termination Style :
- SMD (SMT) Tab
- HTS Code :
- 8542.39.00.01
- RoHS Status :
- ROHS3 Compliant
- Port Size :
- Male - 0.13 3.3mm Tube Dual
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pressure Type :
- Differential
- Port Style :
- Barbed
- Factory Lead Time :
- 12 Weeks
- Voltage - Supply :
- 10V~16V
- Operating Pressure :
- 29.01PSI (200kPa)
- Datasheets
- MPXV2202DPT1
MPX2202 Series Differential Pressure Sensor Wheatstone Bridge -40°C~125°C 29.01PSI (200kPa) Barbed 0 mV ~ 40 mV (10V) 10V~16V Temperature Compensated
MPXV2202DPT1 Description
The MPXV2202DPT1 is a 200 kPa On-Chip Temperature Compensated Silicon Pressure Sensor.
MPXV2202DPT1 Features
-
Temperature Compensated Over 0℃ to +85℃
-
Easy-to-Use Chip Carrier Package Options
-
Available in Absolute, Differential and Gauge Configurations
-
Ratiometric to Supply Voltage
-
Available in Easy-to-Use Tape and Reel
MPXV2202DPT1 Applications
-
Pump/Motor Controllers
-
Robotics
-
Level Indicators
-
Medical Diagnostics
-
Pressure Switching
-
Barometers
-
Altimeters
