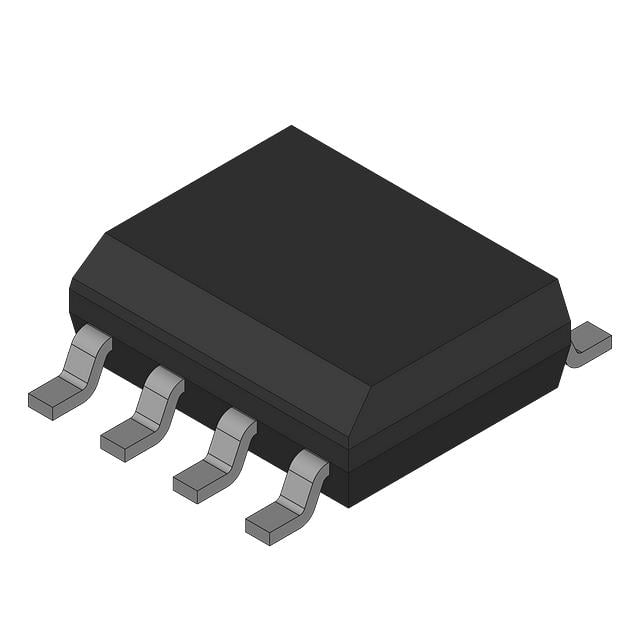

MPXV2102GP

Manufacturer :

Freescale Semiconductor

Product Category :

Pressure Sensors, Transducers

Surface Mount :

yes

Body Height :

7.365mm

HTS Code :

8542.39.00.01

Maximum Pressure :

58.02PSI (400kPa)

Factory Lead Time :

12 Weeks

Operating Pressure :

14.5PSI (100kPa)

Offset-Nom :

0MV

Linearity :

0.4 %

Operating Temperature :

-40°C~125°C

Pressure Range-Max :

14.5 Psi

RoHS Status :

ROHS3 Compliant

Published :

2004

Body Breadth :

12.065 mm

Pressure Sensing Mode :

Gage

Voltage - Supply :

10V~16V

Sensors/Transducers Type :

PRESSURE SENSOR,PEIZORESISTIVE

Port Size :

Male - 0.13 3.17mm Tube

Applications :

Board Mount

Moisture Sensitivity Level (MSL) :

Not Applicable

Package / Case :

8-SMD, Gull Wing, Side Port

Output Type :

Wheatstone Bridge

Pressure Type :

Vented Gauge

Output :

0 mV ~ 40 mV (10V)

Body Length or Diameter :

12.065mm

ECCN Code :

EAR99

Response Time :

1000 μs

Series :

MPXV2102

Mounting Feature :

Surface Mount

Sensitivity (mV/V) :

0.4 mV/V

Termination Style :

Gull wing

Feature :

Temperature Compensated

Port Style :

Barbed
