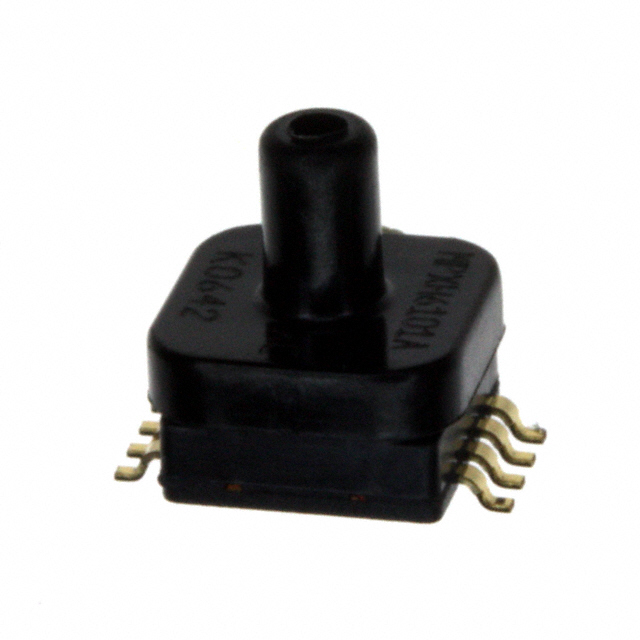

MPXH6250AC6U

Manufacturer :

NXP Semiconductors

Product Category :

Pressure Sensors, Transducers

ECCN Code :

EAR99

Applications :

Board Mount

Body Height :

9.65mm

Operating Pressure :

2.9PSI ~ 36.26PSI (20kPa ~ 250kPa)

Factory Lead Time :

12 Weeks

Surface Mount :

yes

Output Type :

Analog Voltage

Offset-Nom :

0.20V

Maximum Pressure :

145.04PSI (1000kPa)

Port Size :

Male - 0.13 3.3mm Tube

Mounting Feature :

Surface Mount

Housing :

Plastic

Output :

0.3 V ~ 4.9 V

Body Breadth :

8.5 mm

Feature :

Temperature Compensated

Published :

2003

Port Style :

Barbless

Pressure Type :

Absolute

Body Length or Diameter :

8.5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination Style :

Gull wing

Accuracy :

±1.5%

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-40°C~125°C

HTS Code :

8542.31.00.01

Series :

MPXH6250A

Package / Case :

8-SOIC (0.335, 8.50mm Width), Top Port

Response Time :

1000 μs

Sensitivity (mV/V) :

20.4 mV/V

Linearity :

1.5 %

Pressure Range-Max :

36 Psi

Sensors/Transducers Type :

PRESSURE SENSOR,PEIZORESISTIVE

Voltage - Supply :

4.74V~5.46V
