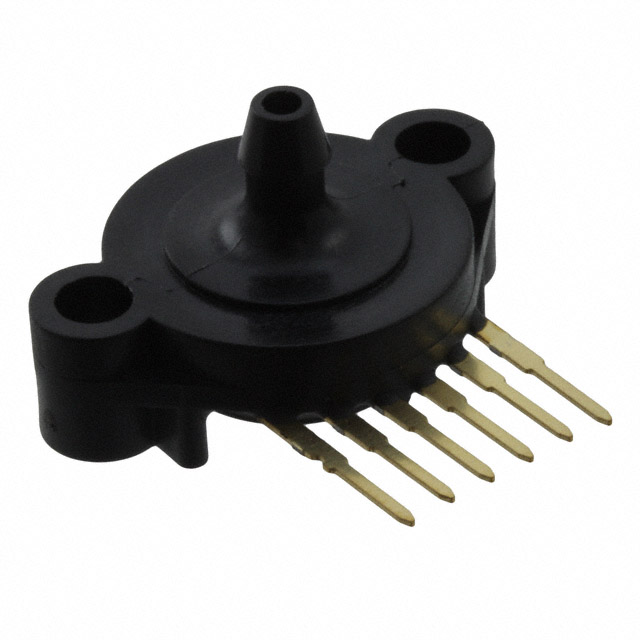

MPX5010GSX

Manufacturer :

NXP Semiconductors

Product Category :

Pressure Sensors, Transducers

Offset-Nom :

0.20V

Sensitivity (mV/V) :

450 mV/V

Series :

MPX5010

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

8 Weeks

Published :

1998

Body Height :

19.05mm

Operating Temperature :

-40°C~125°C

Body Breadth :

16.25 mm

Response Time :

1000 μs

HTS Code :

8542.31.00.01

Housing :

Plastic

Termination Style :

PC Pin

Sensors/Transducers Type :

PRESSURE SENSOR,PEIZORESISTIVE

Accuracy :

±5%

Pressure Range-Max :

1.45 PSI

Feature :

Temperature Compensated

Operating Pressure :

1.45PSI (10kPa)

Pressure Type :

Vented Gauge

Port Size :

Male - 0.19 4.93mm Tube

Package / Case :

6-SIP Module

Output Type :

Analog Voltage

Mounting Feature :

THROUGH HOLE MOUNT

ECCN Code :

EAR99

Port Style :

Barbed

RoHS Status :

ROHS3 Compliant

Output :

0.2 V ~ 4.7 V

Maximum Pressure :

5.8PSI (40kPa)

Voltage - Supply :

4.75V~5.25V

Applications :

Board Mount

Pressure Sensing Mode :

Gage

Body Length or Diameter :

27.94mm

Surface Mount :

No

Linearity :

5 %
