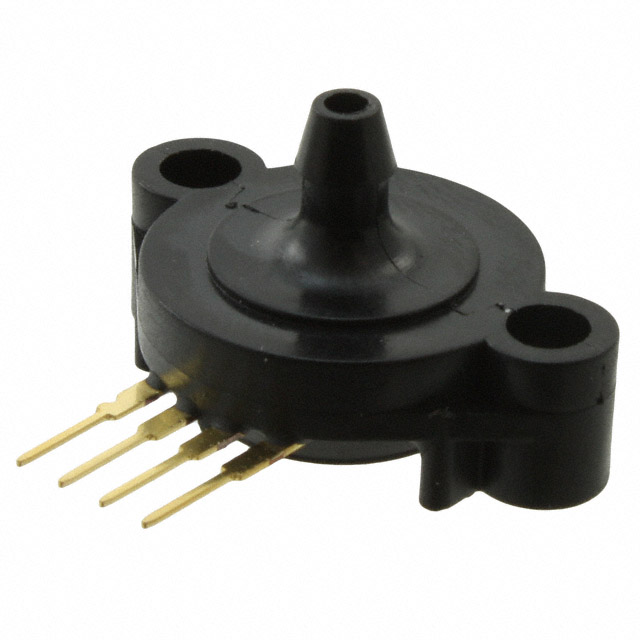

MPX2202ASX
Or copy the link below:
- Mfr.Part #
- MPX2202ASX
- Manufacturer
- NXP Semiconductors
- Package / Case
- 4-SIP Module
- Datasheet
- Download
- Description
- SENSOR ABS PRESS 29PSI MAX
- Stock
- 1,747
- In Stock ：
- 1,747
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NXP Semiconductors
- Product Category :
- Pressure Sensors, Transducers
- Linearity :
- 1 %
- Operating Temperature :
- -40°C~125°C
- Housing :
- Plastic
- Feature :
- Temperature Compensated
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Offset-Nom :
- 0MV
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- No
- Package / Case :
- 4-SIP Module
- Mounting Feature :
- THROUGH HOLE MOUNT
- Terminal Finish :
- NOT SPECIFIED
- Port Size :
- Male - 0.19 4.93mm Tube
- Pressure Range-Max :
- 29 Psi
- Output :
- 0 mV ~ 40 mV (10V)
- Maximum Pressure :
- 58.02PSI (400kPa)
- Applications :
- Board Mount
- Port Style :
- Barbed
- Series :
- MPX2202
- Operating Pressure :
- 29.01PSI (200kPa)
- Sensitivity (mV/V) :
- 0.2 mV/V
- Termination Style :
- PC Pin
- Sensors/Transducers Type :
- PRESSURE SENSOR,PEIZORESISTIVE
- Pressure Type :
- Absolute
- Response Time :
- 1000 μs
- Voltage - Supply :
- 10V~16V
- Surface Mount :
- No
- Output Type :
- Wheatstone Bridge
- Datasheets
- MPX2202ASX
MPX2202 Series Absolute Pressure Sensor Wheatstone Bridge -40°C~125°C 29.01PSI (200kPa) Barbed 0 mV ~ 40 mV (10V) 10V~16V Temperature Compensated
MPX2202ASX Overview
Transducers in 4-SIP Module are included for convenience. For reliable performance, set the temperature of the transducers to -40°C~125°C. Supply voltages of 10V~16V are suitable for the transducers. 29 Psi is the maximum pressure range set by this transducer.
MPX2202ASX Features
Moisture Sensitivity Level: 3 (168 Hours)
Package / Case: 4-SIP Module
Operating Temperature: -40°C~125°C
MPX2202 series
Sensitivity (mV/V): 0.2 mV/V
Operating Pressure: 29.01PSI (200kPa)
MPX2202ASX Applications
There are a lot of Rochester Electronics, LLC
MPX2202ASX Transducers applications.
- Mobile Phones
- Virtual Reality and Gaming Equipment
- Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
- Refrigerant pressure monitoring in HVAC/R systems
- Dry air system pressure, process controls and automation
- Dry air system monitoring
