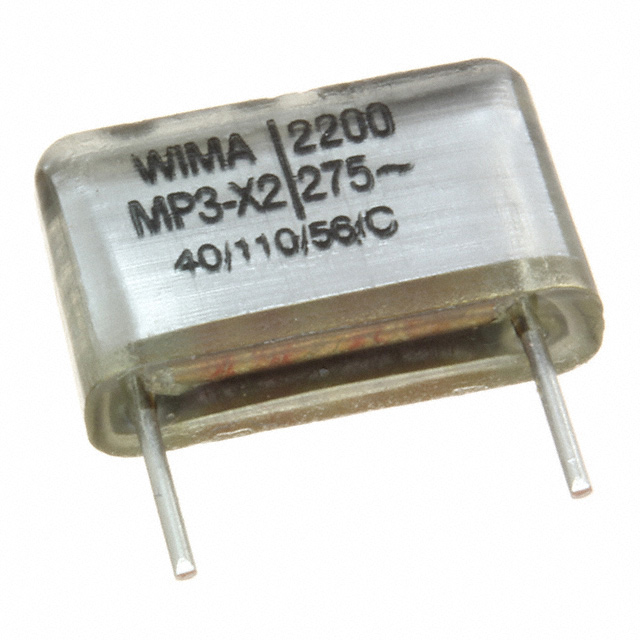

MPX21W1220FA00MSSD
Or copy the link below:
- Mfr.Part #
- MPX21W1220FA00MSSD
- Manufacturer
- WIMA
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 2200PF 20% 275VAC RAD
- Stock
- 2,922
- In Stock ：
- 2,922
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WIMA
- Product Category :
- Film Capacitors
- Package / Case :
- Radial
- Pbfree Code :
- yes
- Terminal Finish :
- Tin (Sn)
- Published :
- 2012
- Packaging :
- Bulk
- Height Seated (Max) :
- 0.335 8.50mm
- ECCN Code :
- EAR99
- Capacitance :
- 2200pF
- Depth :
- 4mm
- JESD-609 Code :
- e3
- Dielectric Material :
- Paper, Metallized
- Capacitor Type :
- PAPER CAPACITOR
- Termination :
- PC Pins
- Ratings :
- X2
- Surface Mount :
- No
- Factory Lead Time :
- 11 Weeks
- Length :
- 13.5mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Lead Pitch :
- 10mm
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Size / Dimension :
- 0.531Lx0.157W 13.50mmx4.00mm
- Operating Temperature :
- -40°C~110°C
- Terminal Shape :
- Wire
- Radiation Hardening :
- No
- Tolerance :
- ±20%
- HTS Code :
- 8532.25.00.10
- Lead Diameter :
- 600 µm
- Number of Terminations :
- 2
- Applications :
- EMI, RFI Suppression
- Rated (AC) Voltage (URac) :
- 275V
- Voltage - Rated AC :
- 275V
- Lead Spacing :
- 0.394 10.00mm
- Size Code :
- 5316
- Rated (DC) Voltage (URdc) :
- 630V
- Datasheets
- MPX21W1220FA00MSSD
2200pF Film Capacitor ±20% Radial PC Pins 275V-AC Paper, Metallized
MPX21W1220FA00MSSD Overview
For systems to operate, a rated (DC) voltage (URdc) of 630V must be applied internally.Lead spacing is 0.394 10.00mm for this electrical device.In order to power systems, you must have a rated (AC) voltage of 275V (URac).Devices with a -40°C~110°C temperature capability can be operated.
MPX21W1220FA00MSSD Features
a rated (DC) voltage (URdc) of 630V
an internal rated (AC) voltage (URac) of 275V
MPX21W1220FA00MSSD Applications
There are a lot of WIMA
MPX21W1220FA00MSSD applications of film capacitors.
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
