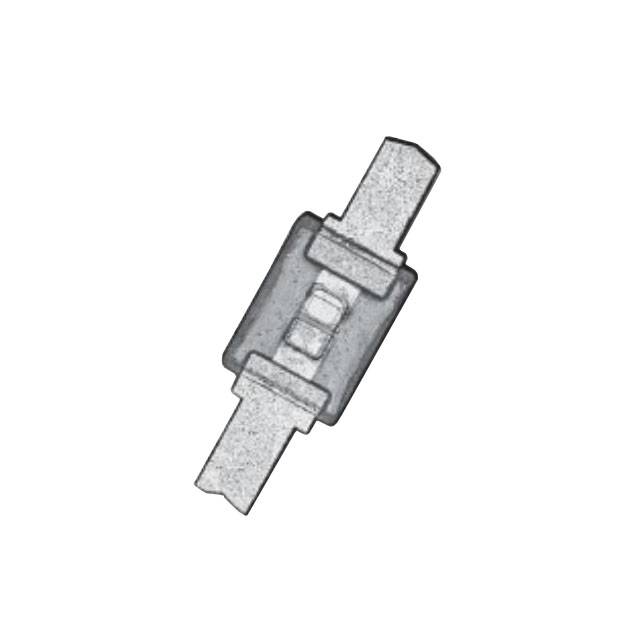

MPND4005-B15

Manufacturer :

MACOM Technology Solutions

Product Category :

Diodes - RF

Power Dissipation-Max :

0.25 W

Reach Compliance Code :

Compliant

HTS Code :

8541.10.00.80

Diode Type :

PIN DIODE

Diode Capacitance-Max :

0.02 pF

Product Status :

Obsolete

JESD-30 Code :

R-CDMW-F2

Product Type :

PIN Diodes

Surface Mount :

yes

Brand :

MACOM

Additional Feature :

High Reliability

Diode Forward Resistance-Max :

6.5 Ω

Diode Element Material :

SILICON

Package / Case :

B15

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Finish :

Gold

Product Category :

PIN Diodes

Package Shape :

RECTANGULAR

Base Product Number :

MPND4005

Configuration :

Single

Capacitance @ Vr, F :

0.02pF @ 10V, 15GHz

Power Dissipation (Max) :

250 mW

JESD-609 Code :

e4

Package :

Tray

Number of Terminals :

2

Supplier Device Package :

B15

Pbfree Code :

yes

Minority Carrier Lifetime-Nom :

0.125 µs

Number of Elements :

1

Voltage - Peak Reverse (Max) :

100V

Breakdown Voltage-Min :

100 V

Subcategory :

Diodes and Rectifiers

Terminal Form :

Flat

Resistance @ If, F :

6.5Ohm @ 20mA, 3GHz

Series :

-

Terminal Position :

Dual

ECCN Code :

EAR99

Operating Temperature :

-65°C ~ 175°C

Qualification Status :

Not Qualified
