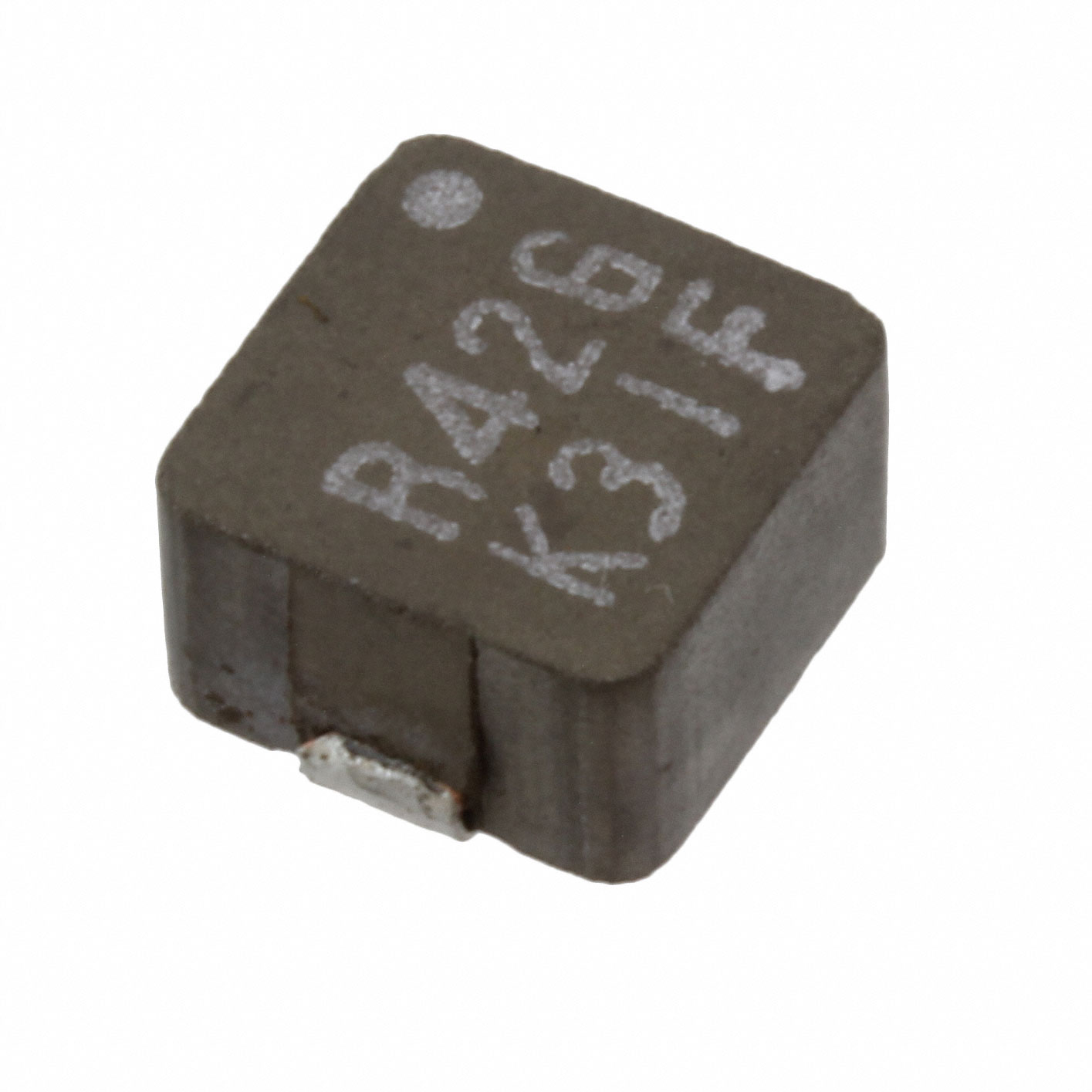

MPCG0740LR42
Or copy the link below:
- Mfr.Part #
- MPCG0740LR42
- Manufacturer
- KEMET
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 420NH 22A 1.55MOHM SMD
- Stock
- 264
- In Stock ：
- 264
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Fixed Inductors
- Terminal Shape :
- WRAPAROUND
- Shielding :
- Shielded
- RoHS Status :
- ROHS3 Compliant
- Number of Terminations :
- 2
- Rated Current-Max :
- 22A
- Test Frequency :
- 0.1MHz
- Series :
- MPCG
- Material - Core :
- Metal Composite
- Current - Saturation :
- 20A
- Factory Lead Time :
- 29 Weeks
- HTS Code :
- 8504.50.80.00
- DC Resistance (DCR) :
- 1.55mOhm Max
- ECCN Code :
- EAR99
- Tolerance :
- ±20%
- Inductor Application :
- POWER INDUCTOR
- Published :
- 2012
- Current Rating (Amps) :
- 22A
- Operating Temperature :
- -20°C~120°C
- Number of Functions :
- 1
- Inductor Type :
- GENERAL PURPOSE INDUCTOR
- Surface Mount :
- yes
- Inductance Tolerance :
- 20%
- Inductance :
- 420nH
- Size / Dimension :
- 0.315Lx0.264W 8.00mmx6.70mm
- Inductance Frequency - Test :
- 100kHz
- Height Seated (Max) :
- 0.157 4.00mm
- Terminal Placement :
- DUAL ENDED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- Nonstandard
- Shape/Size Description :
- RECTANGULAR PACKAGE
- Packaging :
- Tape and Reel (TR)
- Mounting Type :
- Surface Mount
- Datasheets
- MPCG0740LR42
MPCG0740LR42 Documents
MPCG0740LR42 datasheet pdf and Fixed Inductors product details from KEMET stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
Manufacturer related products
Catalog related products
.jpg)
Related products
| Part | Manufacturer | Stock | Description |
|---|---|---|---|
| MPCG0730LR40 | KEMET | 1,368 | FIXED IND 400NH 16A 2.6 MOHM SMD |
| MPCG1040LR36 | KEMET | 3,001 | FIXED IND 360NH 25A 1.05MOHM SMD |
| MPCG1040LR45 | KEMET | 2,133 | FIXED IND 450NH 25A 1.1 MOHM SMD |
| MPCG1040LR45/BKN | KEMET | 500 | MPCG1040LR45/BKN |
| MPCG1040LR88 | KEMET | 1,498 | FIXED IND 880NH 17A 2.3 MOHM SMD |
