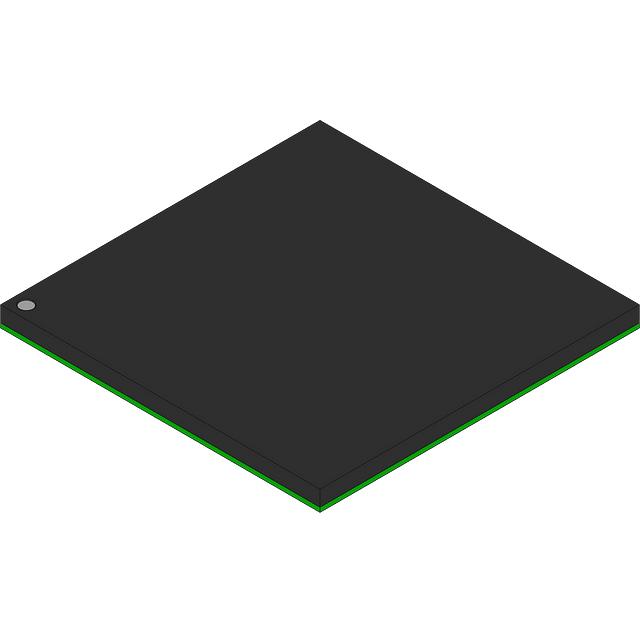

MPC860TZQ66D4

Manufacturer :

Freescale Semiconductor

Product Category :

Microprocessors

Height Seated (Max) :

2.52mm

Ethernet :

10Mbps (4), 10/100Mbps (1)

Published :

1995

Clock Frequency :

50MHz

Series :

MPC8xx

Peak Reflow Temperature (Cel) :

245

Supply Voltage :

3.3V

Speed :

66MHz

Voltage - I/O :

3.3V

Bit Size :

32

Power Supplies :

3.3V

Number of Terminations :

357

Time@Peak Reflow Temperature-Max (s) :

30

Operating Temperature :

0°C~95°C TA

External Data Bus Width :

32

Terminal Finish :

Tin/Lead (Sn/Pb)

Boundary Scan :

yes

Terminal Form :

Ball

RoHS Status :

Non-RoHS Compliant

Address Bus Width :

32

Package / Case :

357-BBGA

Co-Processors/DSP :

Communications; CPM

Length :

25mm

Base Part Number :

MPC860

Terminal Pitch :

1.27mm

Factory Lead Time :

12 Weeks

Packaging :

Tray

Additional Interfaces :

CAN, I2C, IrDA, LIN, SCI, SDHC, SPI, UART/USART

Low Power Mode :

yes

JESD-30 Code :

S-PBGA-B357

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

RAM Controllers :

DRAM

Format :

FIXED POINT

Terminal Position :

BOTTOM

Supply Voltage-Min (Vsup) :

3.135V

JESD-609 Code :

e0

Graphics Acceleration :

No

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR, RISC

HTS Code :

8542.31.00.01

Supply Voltage-Max (Vsup) :

3.465V

Integrated Cache :

yes

Surface Mount :

yes

ECCN Code :

3A991.A.2

Number of Cores/Bus Width :

1 Core 32-Bit
