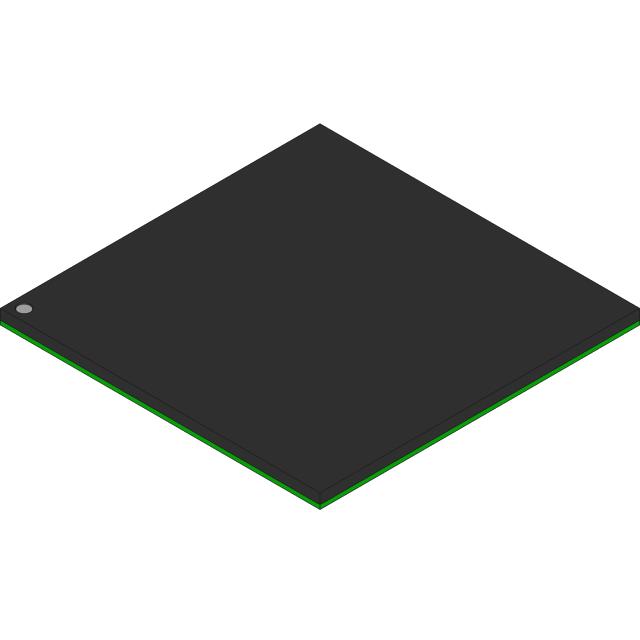

MPC852TCVR50A

Manufacturer :

Freescale Semiconductor

Product Category :

Microprocessors

Ethernet :

10Mbps (1)

Peak Reflow Temperature (Cel) :

245

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR, RISC

Packaging :

Tray

RoHS Status :

ROHS3 Compliant

Additional Interfaces :

HDLC/SDLC, PCMCIA, SPI, UART

Power Supplies :

1.83.3V

Operating Temperature :

-40°C~100°C TA

Terminal Form :

Ball

Boundary Scan :

yes

Series :

MPC8xx

JESD-609 Code :

e1

Graphics Acceleration :

No

Address Bus Width :

32

Supply Voltage :

1.8V

Height Seated (Max) :

2.54mm

ECCN Code :

3A991.A.2

Co-Processors/DSP :

Communications; CPM

Factory Lead Time :

12 Weeks

Integrated Cache :

yes

JESD-30 Code :

S-PBGA-B256

External Data Bus Width :

32

Speed :

50MHz

Time@Peak Reflow Temperature-Max (s) :

30

Supply Voltage-Max (Vsup) :

1.9V

Bit Size :

32

Length :

23mm

Terminal Position :

BOTTOM

Base Part Number :

MPC852

Format :

FIXED POINT

Voltage - I/O :

3.3V

HTS Code :

8542.31.00.01

Terminal Pitch :

1.27mm

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Number of Cores/Bus Width :

1 Core 32-Bit

Published :

1999

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

RAM Controllers :

DRAM

Package / Case :

256-BBGA

Surface Mount :

yes

Number of Terminations :

256

Low Power Mode :

yes

Supply Voltage-Min (Vsup) :

1.7V

Clock Frequency :

66MHz
