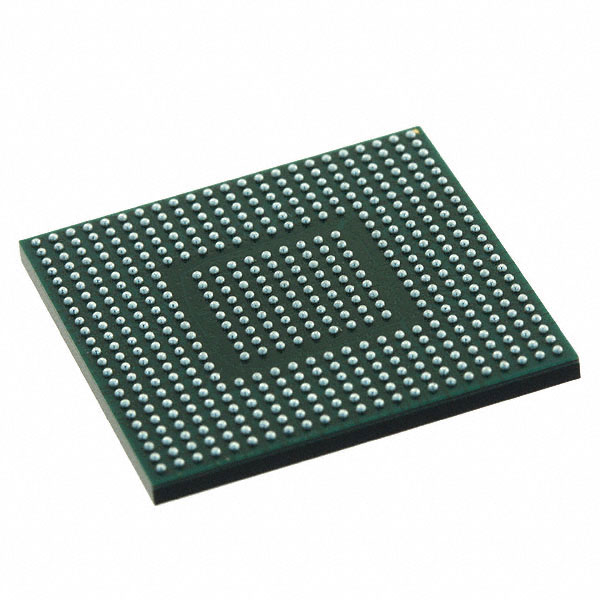

MPC8309CVMADDCA

Manufacturer :

NXP Semiconductors

Product Category :

Microprocessors

Supply Voltage-Min (Vsup) :

0.95V

Package / Case :

489-LFBGA

Supply Voltage-Max (Vsup) :

1.05V

RoHS Status :

ROHS3 Compliant

JESD-30 Code :

S-PBGA-B489

Core Processor :

PowerPC e300c3

Surface Mount :

yes

Time@Peak Reflow Temperature-Max (s) :

40

Number of Cores/Bus Width :

1 Core 32-Bit

Format :

Floating Point

Integrated Cache :

yes

USB :

USB 2.0 (1)

Power Supplies :

1V

Factory Lead Time :

10 Weeks

ECCN Code :

3A991.A.2

RAM Controllers :

DDR2

Additional Interfaces :

CAN, I2C, IrDA, LIN, SCI, SDHC, SPI, UART/USART

Number of Terminations :

489

Graphics Acceleration :

No

Bit Size :

32

HTS Code :

8542.31.00.01

Terminal Position :

BOTTOM

Published :

2002

Terminal Pitch :

0.8mm

Terminal Form :

Ball

Speed :

266MHz

Peak Reflow Temperature (Cel) :

260

JESD-609 Code :

e2

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Supply Voltage :

1V

Packaging :

Tray

Terminal Finish :

TIN COPPER/TIN SILVER

Base Part Number :

MPC8309

Series :

MPC83xx

Operating Temperature :

-40°C~105°C TA

Length :

19mm

Boundary Scan :

yes

Voltage - I/O :

1.8V 3.3V

Height Seated (Max) :

1.61mm

Co-Processors/DSP :

Communications; QUICC Engine

Low Power Mode :

yes

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR, RISC

Ethernet :

10/100Mbps (3)

Clock Frequency :

66.67MHz
