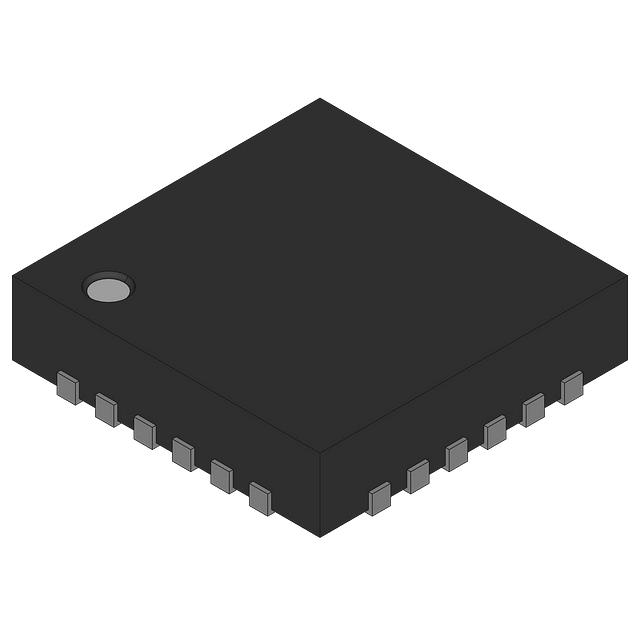

MPC17531ATEP
Or copy the link below:
- Mfr.Part #
- MPC17531ATEP
- Manufacturer
- Freescale Semiconductor
- Package / Case
- 24-VFQFN Exposed Pad
- Datasheet
- Download
- Description
- H-BRIDGE, DUAL, LOW VOLTAGE, STE
- Stock
- 1,387
- In Stock ：
- 1,387
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Freescale Semiconductor
- Product Category :
- Motor Drivers, Controllers
- ECCN Code :
- EAR99
- Output Configuration :
- Half Bridge (4)
- Width :
- 4mm
- Base Part Number :
- MPC17531
- Power Supplies :
- 3V
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -20°C~150°C TJ
- Terminal Form :
- NO LEAD
- Motor Type - Stepper :
- Bipolar
- Surface Mount :
- yes
- Terminal Pitch :
- 0.5mm
- Height Seated (Max) :
- 1mm
- Factory Lead Time :
- 12 Weeks
- Package / Case :
- 24-VFQFN Exposed Pad
- Published :
- 2003
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Voltage - Supply :
- 2.7V~3.6V
- Length :
- 4mm
- Applications :
- Battery Powered
- Peak Reflow Temperature (Cel) :
- 260
- Qualification Status :
- Not Qualified
- Voltage - Load :
- 2V~8.6V
- Terminal Position :
- QUAD
- Moisture Sensitivity Level (MSL) :
- 2 (1 Year)
- Motor Type - AC, DC :
- Brushed DC
- Supply Current-Max (Isup) :
- 3mA
- RoHS Status :
- ROHS3 Compliant
- Supply Voltage-Max (Vsup) :
- 8.6V
- Supply Voltage :
- 5V
- Packaging :
- Tray
- HTS Code :
- 8542.39.00.01
- Function :
- Driver - Fully Integrated, Control and Power Stage
- Number of Terminations :
- 24
- Analog IC - Other Type :
- STEPPER MOTOR CONTROLLER
- Supply Voltage-Min (Vsup) :
- 2V
- JESD-30 Code :
- S-XQCC-N24
- Interface :
- Parallel
- Current - Output :
- 700mA
- Datasheets
- MPC17531ATEP
Motor Drivers, Controllers Freescale Semiconductor MPC17531ATEP Overview
The Motor Drivers, Controllers Freescale Semiconductor MPC17531ATEP is an exceptional solution for driving small, low-voltage motors, especially in compact applications. This dual H-Bridge driver is engineered by Freescale Semiconductor, a leader in semiconductor technology, ensuring high-quality and performance. Its design focuses on efficiency and reliability, providing a robust platform for developing advanced motor control systems. This product is ideal for designers looking to integrate motor control into their applications with minimal power consumption and maximal space efficiency.
MPC17531ATEP Features
The MPC17531ATEP motor driver offers several key features that make it highly attractive for a wide range of applications. It supports low voltage operations, which is critical for portable and battery-powered devices. The dual H-Bridge configuration allows for bidirectional control of two DC motors or one stepper motor, making it extremely versatile. Additionally, it features thermal shutdown and under-voltage lockout, enhancing the safety and durability of the motor control system.
MPC17531ATEP Applications
- Battery-Powered Toys: Utilizes the MPC17531ATEP for efficient motor control in toys, enhancing battery life and ensuring safe operation through its low-voltage capabilities.
- Portable Medical Devices: Applies the MPC17531ATEP for reliable and precise control in medical device actuators where consistent performance and compact design are critical.
- Consumer Robotics: Employs the MPC17531ATEP to manage small robotic mechanisms, offering the flexibility of dual motor control with minimal power usage, ideal for mobile robotic applications.
- Office Automation: Integrates the MPC17531ATEP in office equipment such as automated file sorters or small scanning devices, where efficient space usage and low operational voltages are required.
