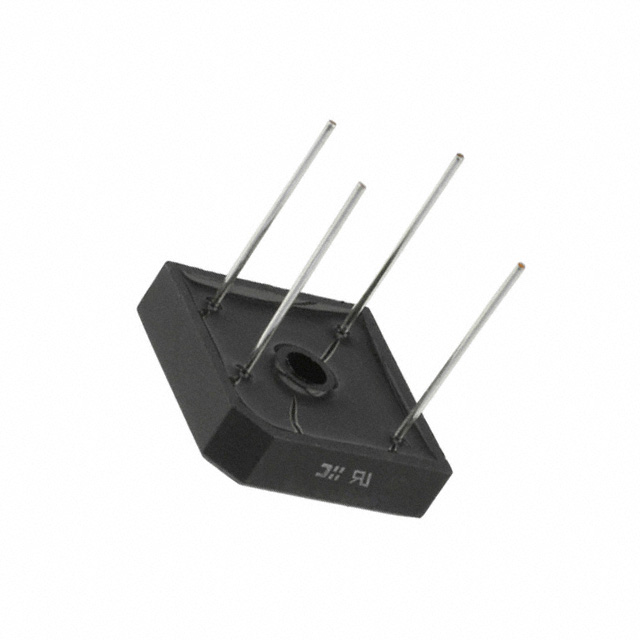

MP252W

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Peak Reflow Temperature (Cel) :

265

Height :

7.9 mm

ECCN Code :

EAR99

Package Shape :

Square

Product Type :

Bridge Rectifiers

Diode Element Material :

SILICON

Package / Case :

MP-25W

Pin Count :

4

Reverse Current-Max :

0.00001 µA

Subcategory :

Diodes and Rectifiers

HTS Code :

8541.10.00.80

Brand :

Rectron

Minimum Operating Temperature :

- 55 C

Series :

MP25

Mounting Type :

THROUGH-HOLE

Package :

Tray

Rep Pk Reverse Voltage-Max :

200 V

Output Current-Max :

25 A

Supplier Device Package :

MP-25W

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 12.5 A

Voltage :

Reverse Voltage Vr - 200V

Operating Temperature :

-55°C ~ 150°C (TJ)

Terminal Form :

Wire

Product Status :

Active

Qualification Status :

Not Qualified

Termination Style :

Through Hole

Reach Compliance Code :

Compliant

Type :

Single Phase Bridge

Number of Terminals :

4

Number of Elements :

1

Number of Phases :

1

Breakdown Voltage-Min :

200 V

Packaging :

Case - MP-25W

Configuration :

BRIDGE, 4 ELEMENTS

Manufacturer :

Rectron

Current - Reverse Leakage @ Vr :

5 µA @ 200 V

RoHS :

Y

JESD-30 Code :

S-PUFM-W4

Non-rep Pk Forward Current-Max :

300 A

Terminal Position :

UPPER

Maximum Operating Temperature :

+ 150 C

Tolerance :

Recovery Time - < 60 Hz

Case Connection :

Isolated

Technology :

Standard

Width :

29 mm

Voltage - Peak Reverse (Max) :

200 V

Max Surge Current :

300 A

Length :

29 mm

Pbfree Code :

yes

Vf - Forward Voltage :

1.1 V

Mounting Style :

SMD/SMT

Product Category :

Bridge Rectifiers

Current - Average Rectified (Io) :

25 A

Surface Mount :

No

Diode Type :

Single Phase

Additional Feature :

UL RECOGNIZED
