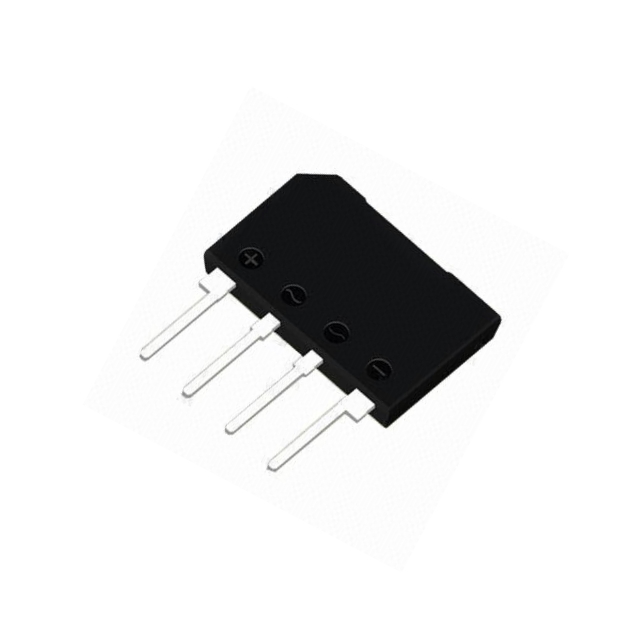

MP151

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Subcategory :

Diodes and Rectifiers

Product Status :

Active

Manufacturer :

Rectron

Max Operating Temperature :

150 °C

Technology :

Standard

Type :

Single Phase Bridge

Product Category :

Bridge Rectifiers

Current - Average Rectified (Io) :

15 A

Tolerance :

Recovery Time - < 60 Hz

Package :

Tray

Max Surge Current :

300 A

Max Reverse Leakage Current :

5 µA

Voltage - Peak Reverse (Max) :

100 V

Supplier Device Package :

MP-15

Maximum Operating Temperature :

+ 150 C

Mounting Style :

Through Hole

Minimum Operating Temperature :

- 55 C

RoHS :

Y

Termination Style :

Through Hole

Voltage :

Reverse Voltage Vr - 100V

Height :

7.9 mm

Operating Temperature :

-55°C ~ 150°C (TJ)

Length :

29 mm

Voltage - Forward (Vf) (Max) @ If :

1.05 V @ 7.5 A

Min Operating Temperature :

-55 °C

Package / Case :

MP-15W

Brand :

Rectron

Series :

MP15

Product Type :

Bridge Rectifiers

Diode Type :

Single Phase

Width :

29 mm

Packaging :

Case - MP-15W

Current - Reverse Leakage @ Vr :

500 nA @ 100 V

Mounting Type :

THROUGH-HOLE

Vf - Forward Voltage :

1.1 V
