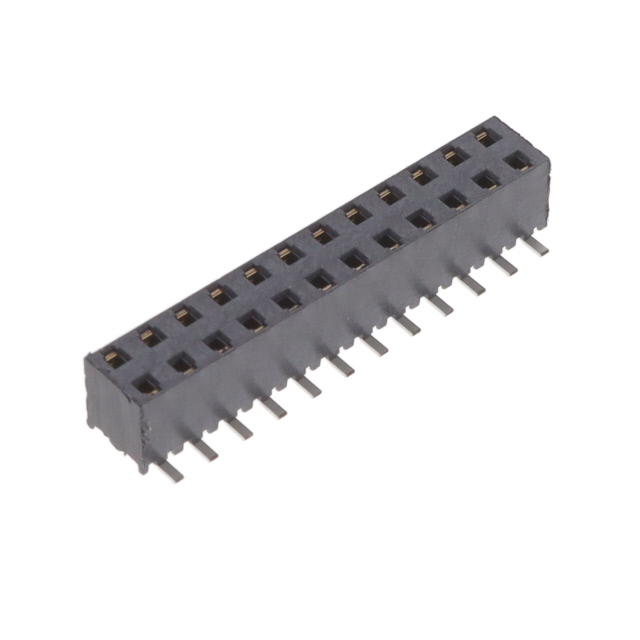

MMS-112-02-F-DV

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Receptacles, Female Sockets

Number of Positions :

24

Packaging :

Tube

RoHS Status :

ROHS3 Compliant

Orientation :

Straight

Series :

MMS

Depth :

4mm

Row Spacing - Mating :

0.079 (2.00mm)

Pbfree Code :

yes

Mounting Option 1 :

LOCKING

MIL Conformance :

No

Plating Thickness :

3μin

Additional Feature :

TOP ENTRY; BOTTOM ENTRY

Style :

Board to Board or Cable

Length :

24.56mm

JESD-609 Code :

e3

Mixed Contacts :

No

Termination :

Solder

Mounting Type :

Surface Mount

Reference Standard :

UL, CSA

Contact Resistance :

10MOhm

Fastening Type :

Push-Pull

Filter Feature :

No

Connector Type :

Receptacle

Number of Rows :

2

Factory Lead Time :

3 Weeks

Contact Finish - Post :

Tin

Number Of PCB Rows :

2

Insulation Height :

0.177 4.50mm

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

Current Rating (Amps) :

3.9A per Contact

Polarization Key :

POLARIZED HOUSING

PCB Contact Row Spacing :

5.3086 mm

Body Breadth :

0.157 inch

Contact Material :

Phosphor Bronze

Total Number of Contacts :

24

Contact Finish - Mating :

Gold

Mating Contact Pitch :

0.079 inch

Contact Type :

Female Socket

Operating Temperature :

-55°C~125°C

Insulation Color :

Black

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Gender :

FEMALE

Number of Conductors :

ONE

Contact Finish Thickness - Mating :

3.00μin 0.076μm

Housing Material :

Polymer

Pitch - Mating :

0.079 2.00mm

Withdrawl Force-Min :

.6116 N

DIN Conformance :

No

Number of Positions Loaded :

All

Contact Shape :

Square
