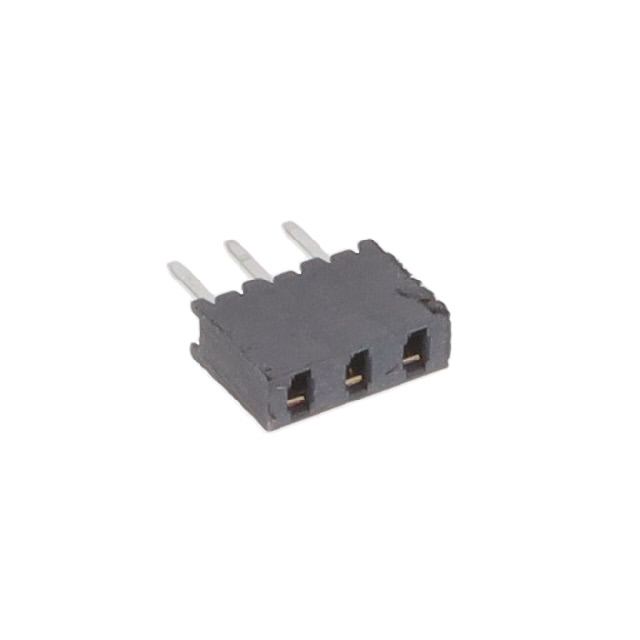

    MMS-103-01-F-SV

    Share

    Or copy the link below:

    Mfr.Part #
    MMS-103-01-F-SV
    Manufacturer
    Samtec, Inc.
    Package / Case
    Datasheet
    Download
    Description
    CONN RCPT 3POS 0.079 GOLD PCB
    Stock
    237
    In Stock ：
    237

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Samtec, Inc.
    Product Category :
    Headers, Receptacles, Female Sockets
    Series :
    MMS
    DIN Conformance :
    No
    Contact Material :
    Phosphor Bronze
    Number of Positions Loaded :
    All
    Insulation Height :
    0.175 4.45mm
    Connector Type :
    Receptacle
    Depth :
    2mm
    Factory Lead Time :
    3 Weeks
    Contact Length - Post :
    0.115 2.92mm
    Option :
    GENERAL PURPOSE
    Contact Shape :
    Square
    Polarization Key :
    POLARIZED HOUSING
    Body Breadth :
    0.079 inch
    Termination :
    Solder
    Insulation Material :
    Liquid Crystal Polymer (LCP)
    Number Of PCB Rows :
    1
    JESD-609 Code :
    e3
    Reliability :
    COMMERCIAL
    Fastening Type :
    Push-Pull
    Mating Contact Pitch :
    0.079 inch
    Number of Rows :
    1
    Insulation Color :
    Black
    Contact Finish - Post :
    Tin
    Mounting Option 1 :
    LOCKING
    Operating Temperature :
    -55°C~125°C
    Pitch - Mating :
    0.079 2.00mm
    Plating Thickness :
    FLASH inch
    Additional Feature :
    TOP ENTRY; BOTTOM ENTRY
    Number of Positions :
    3
    Contact Finish Thickness - Mating :
    3.00μin 0.076μm
    Filter Feature :
    No
    Max Current Rating :
    2A
    Reference Standard :
    UL, CSA
    Mounting Type :
    Through Hole
    IEC Conformance :
    No
    RoHS Status :
    ROHS3 Compliant
    Length :
    6.254mm
    Number of Conductors :
    ONE
    MIL Conformance :
    No
    Housing Material :
    Polymer
    Current Rating (Amps) :
    3.9A per Contact
    Style :
    Board to Board or Cable
    PCB Contact Pattern :
    RECTANGULAR
    Contact Finish - Mating :
    Gold
    Contact Type :
    Female Socket
    Orientation :
    Straight
    Contact Resistance :
    10MOhm
    Packaging :
    Bulk
    Mixed Contacts :
    No
    Radiation Hardening :
    No
    Gender :
    FEMALE
    Datasheets
    MMS-103-01-F-SV
    Introducing Headers, Receptacles, Female Sockets Samtec, Inc. MMS-103-01-F-SV from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-55°C~125°C, Mounting Type：Through Hole, MMS-103-01-F-SV pinout, MMS-103-01-F-SV datasheet PDF, MMS-103-01-F-SV amp .Beyond Headers, Receptacles, Female Sockets Samtec, Inc. MMS-103-01-F-SV ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

    Samtec, Inc. MMS-103-01-F-SV


    1 Rows Receptacle Solder Phosphor Bronze Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 3 Positions Female Socket

    MMS-103-01-F-SV Overview


    The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the MMS Series.To name a few, there is also TOP ENTRY; BOTTOM ENTRY.As a result, the device runs at -55°C~125°C Operating Temperature.

    MMS-103-01-F-SV Features


    MMS series


    MMS-103-01-F-SV Applications


    There are a lot of Samtec Inc.
    MMS-103-01-F-SV Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
