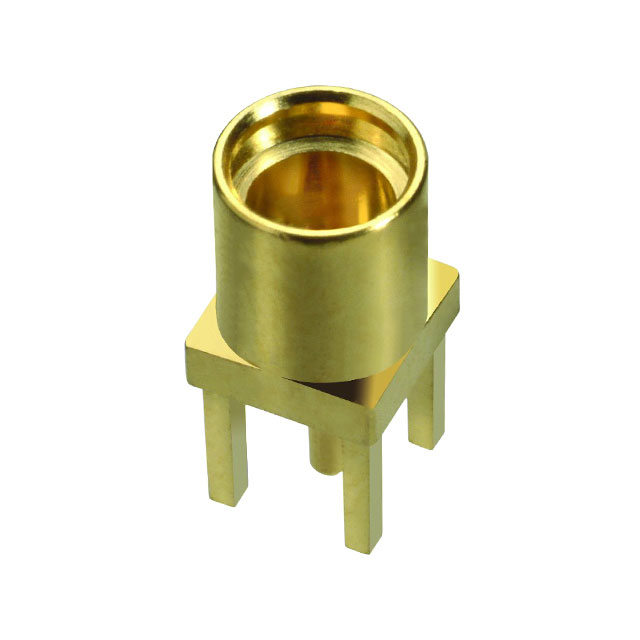

MMCX-3005

Manufacturer :

Harwin

Product Category :

Coaxial Connector (RF) Assemblies

Depth :

3.5mm

Total Number of Contacts :

1

Fastening Type :

Snap-On

Radiation Hardening :

No

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Termination :

Solder

Published :

2005

Gender :

Male

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Contact Resistance :

5mOhm

Insulation Material :

Polytetrafluoroethylene

Option :

GENERAL PURPOSE

DIN Conformance :

No

Insertion Loss :

0.2dB

Mount :

Through Hole

Impedance :

50Ohm

Frequency (Max) :

6GHz

Length :

3.5mm

Center Contact Material :

BERYLLIUM COPPER

Voltage - Rated :

250V

Frequency :

6Hz

Mounting Type :

Through Hole

Reliability :

COMMERCIAL

Number of Ports :

1

Body Material :

Brass

Connector Style :

MMCX

Packaging :

Bulk

VSWR :

1.2

Operating Temperature :

-55°C~155°C

Orientation :

Straight

Pbfree Code :

yes

Mating Cycles :

500

MIL Conformance :

No

JESD-609 Code :

e4

IEC Conformance :

No

Center Contact Plating :

Gold

Contact Style :

COAX

Contact Material :

Copper

Connector Type :

Jack, Female Socket
