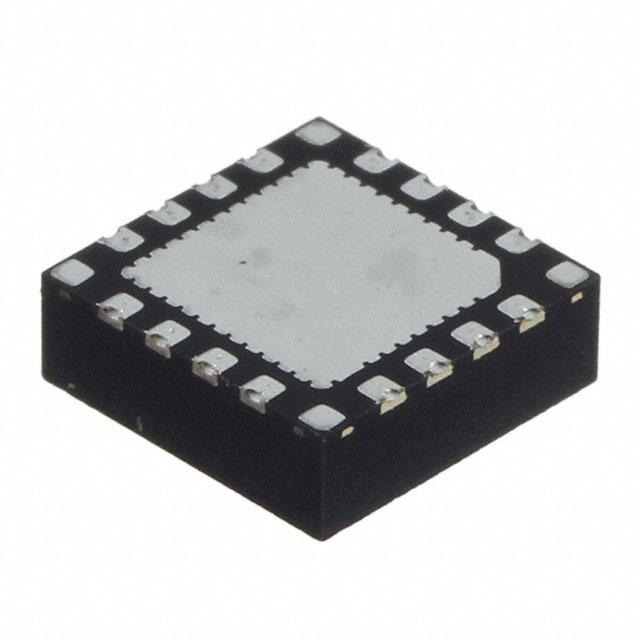

MMA6825BKW

Manufacturer :

NXP Semiconductors

Product Category :

Motion Sensors - Accelerometers

Terminal Finish :

Matte Tin (Sn)

Qualification Status :

Not Qualified

Terminal Form :

NO LEAD

Supply Voltage-Min (Vsup) :

3.135V

Number of Terminations :

16

HTS Code :

8542.39.00.01

Voltage - Supply :

3.135V~5.25V

Supply Voltage :

3.3V

Supply Voltage-Max (Vsup) :

5.25V

Type :

Digital

JESD-609 Code :

e3

Series :

Automotive, AEC-Q100

Time@Peak Reflow Temperature-Max (s) :

40

Length :

6mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Operating Temperature :

-40°C~105°C

Mounting Type :

Surface Mount

Package / Case :

16-QFN Exposed Pad

JESD-30 Code :

S-XQCC-N16

Acceleration Range :

±100g

Output Type :

SPI

Terminal Pitch :

1mm

Surface Mount :

yes

Number of Functions :

1

Height Seated (Max) :

2.03mm

Width :

6mm

Terminal Position :

QUAD

Published :

2011

Peak Reflow Temperature (Cel) :

260

Factory Lead Time :

26 Weeks

Axis :

X, Y

RoHS Status :

ROHS3 Compliant

Sensitivity (LSB/g) :

4.883

Power Supplies :

3.3/5V

ECCN Code :

EAR99

Packaging :

Tube
