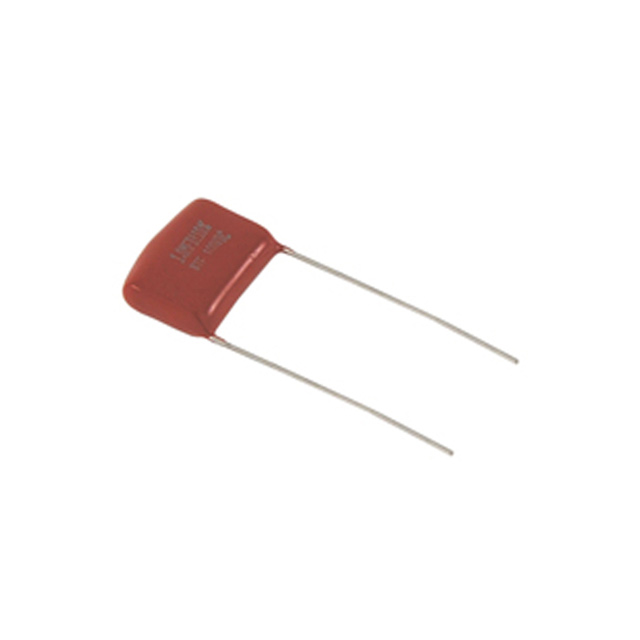

MLR504K630
Or copy the link below:
- Mfr.Part #
- MLR504K630
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 5600PF 10% 630VDC RAD
- Stock
- 80
- In Stock ：
- 80
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Film Capacitors
- Positive Tolerance :
- 10%
- Capacitance :
- 5600 pF
- RoHS :
- No
- Tolerance :
- ±10%
- Number of Terminals :
- 2
- Lead Spacing :
- 1.083" (27.50mm)
- Voltage Rating - AC :
- 250V
- Package :
- Bag
- HTS Code :
- 8532.25.00.80
- Dielectric Material :
- Polyester
- Capacitor Type :
- FILM CAPACITOR
- Lead Diameter :
- 0.031
- Applications :
- GENERAL PURPOSE
- Series :
- MLR
- Ratings :
- -
- Package Type :
- Radial Oval
- Voltage Rating - DC :
- 630V
- Features :
- -
- Reach Compliance Code :
- Unknown
- Lead Length :
- 0.73
- Height - Seated (Max) :
- 0.925" (23.50mm)
- Composition :
- Mylar
- Product Status :
- Active
- Package / Case :
- Radial
- Negative Tolerance :
- 10%
- Manufacturer :
- NTE Electronics
- Terminal Pitch :
- 27.5 mm
- ECCN Code :
- EAR99
- Length :
- 30 mm
- Operating Temperature :
- -55°C ~ 85°C
- Size / Dimension :
- 1.181" L x 0.512" W (30.00mm x 13.00mm)
- Rated (DC) Voltage (URdc) :
- 630 V
- Mounting Type :
- Through Hole
- Width :
- 13 mm
- Rated (AC) Voltage (URac) :
- 250 V
- Height :
- 22 mm
- Package Quantity :
- 1
- Termination :
- PC Pins
- Datasheets
- MLR504K630
MLR 5600 pF Film Capacitor ±10% Radial PC Pins Polyester
MLR504K630 Overview
It is essential that systems function with a rated (DC) voltage (URdc) of 630 V.Electrical devices with 1.083" (27.50mm) lead spacing are used in this application.A 250 V volt rated (AC) voltage is required to power systems.A temperature of -55°C ~ 85°C is suitable for operation of the device.
MLR504K630 Features
a rated (DC) voltage (URdc) of 630 V
an internal rated (AC) voltage (URac) of 250 V
MLR504K630 Applications
There are a lot of NTE Electronics, Inc
MLR504K630 applications of film capacitors.
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
