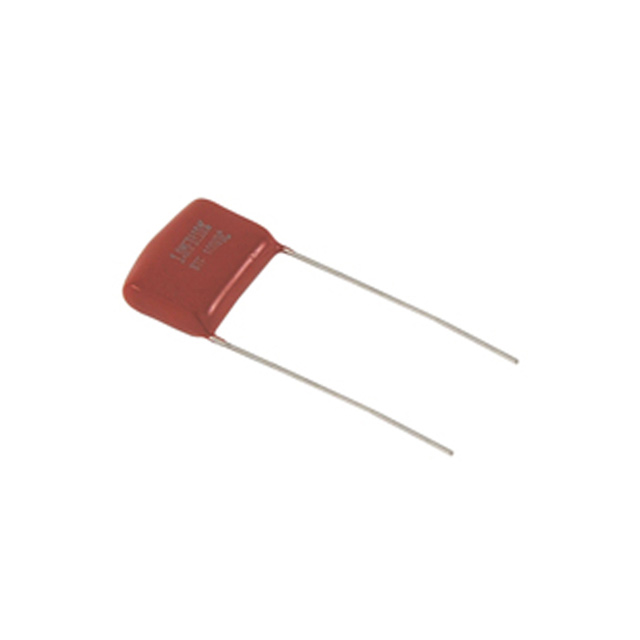

MLR223K630
Or copy the link below:
- Mfr.Part #
- MLR223K630
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.022UF 10% 630VDC RAD
- Stock
- 2,088
- In Stock ：
- 2,088
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Film Capacitors
- Manufacturer :
- NTE Electronics
- Series :
- MLR
- Lead Spacing :
- 0.394" (10.00mm)
- Reach Compliance Code :
- Unknown
- Applications :
- GENERAL PURPOSE
- HTS Code :
- 8532.25.00.80
- Positive Tolerance :
- 10%
- Number of Terminals :
- 2
- Rated (DC) Voltage (URdc) :
- 630 V
- Negative Tolerance :
- 10%
- Features :
- -
- Capacitance :
- 0.022 μF
- Package :
- Bag
- Height :
- 12.5 mm
- Height - Seated (Max) :
- 0.551" (14.00mm)
- ECCN Code :
- EAR99
- Rated (AC) Voltage (URac) :
- 250 V
- Operating Temperature :
- -55°C ~ 85°C
- Mounting Type :
- Through Hole
- Package Type :
- Radial Oval
- Package Quantity :
- 1
- Voltage Rating - AC :
- 250V
- Package / Case :
- Radial
- Ratings :
- -
- Termination :
- PC Pins
- Product Status :
- Active
- Voltage Rating - DC :
- 630V
- Width :
- 7 mm
- Terminal Pitch :
- 10 mm
- Composition :
- Mylar
- Lead Length :
- 0.73
- Size / Dimension :
- 0.551" L x 0.276" W (14.00mm x 7.00mm)
- RoHS :
- No
- Capacitor Type :
- FILM CAPACITOR
- Size Code :
- 5528
- Length :
- 14 mm
- Tolerance :
- ±10%
- Lead Diameter :
- 0.024
- Dielectric Material :
- Polyester
- Datasheets
- MLR223K630
MLR223K630 Documents
MLR 0.022 μF Film Capacitor ±10% Radial PC Pins Polyester
MLR223K630 Overview
For systems to operate, a rated (DC) voltage (URdc) of 630 V must be applied internally.Lead spacing is 0.394" (10.00mm) for this electrical device.In order to power systems, you must have a rated (AC) voltage of 250 V (URac).Devices with a -55°C ~ 85°C temperature capability can be operated.
MLR223K630 Features
a rated (DC) voltage (URdc) of 630 V
an internal rated (AC) voltage (URac) of 250 V
MLR223K630 Applications
There are a lot of NTE Electronics, Inc
MLR223K630 applications of film capacitors.
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
