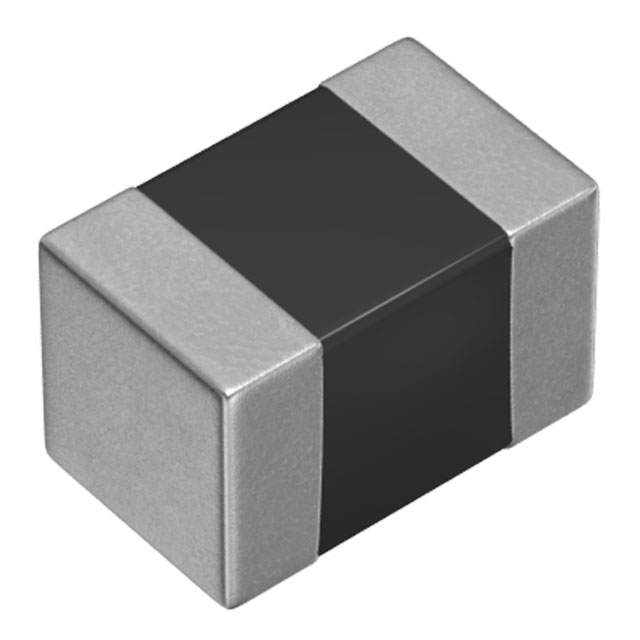

MLF2012C820MT000

Manufacturer :

TDK Corporation

Product Category :

Fixed Inductors

Packaging :

Tape and Reel (TR)

Type :

Multilayer

ECCN Code :

EAR99

Mount :

Surface Mount

Number of Functions :

1

Inductance :

82μH

Lifecycle Status :

Production (Last Updated: 2 months ago)

DC Resistance (DCR) :

3Ohm Max

Packing Method :

TR, 7 INCH

RoHS Status :

ROHS3 Compliant

Test Frequency :

1MHz

Published :

2013

Shape/Size Description :

RECTANGULAR PACKAGE

Terminal Placement :

DUAL ENDED

Rated Current-Max :

0.002A

Terminal Finish :

Tin/Silver (Sn/Ag)

Operating Temperature :

-40°C~85°C

Factory Lead Time :

10 Weeks

Inductor Application :

RF INDUCTOR

Package / Case :

0805 (2012 Metric)

Height Seated (Max) :

0.057 1.45mm

Frequency - Self Resonant :

8MHz

Number of Terminations :

2

Current Rating :

2mA

Quality Factor-Min (at L-nom) :

25

Tolerance :

±20%

Impedance :

3Ohm

Q @ Freq :

25 @ 1MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size / Dimension :

0.079Lx0.049W 2.00mmx1.25mm

Material - Core :

Ferrite

Shielding :

yes

Series :

MLF

Terminal Shape :

WRAPAROUND

Mounting Type :

Surface Mount

HTS Code :

8504.50.80.00

JESD-609 Code :

e2
