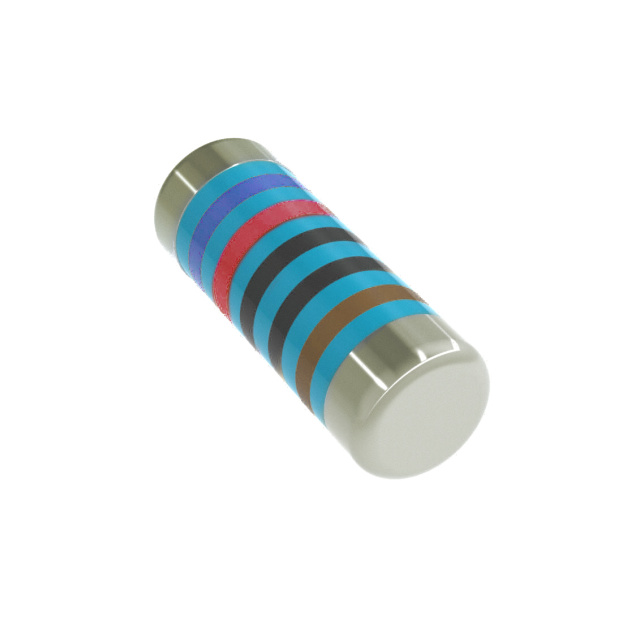

MLF14FTC47R0

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

JESD-609 Code :

e3

Failure Rate :

-

Package :

Digi-Reel?

Supplier Device Package :

0204

Ratings :

-

Rated Temperature :

70

Working Voltage :

200

Maximum Operating Temperature :

+ 155 C

Voltage Rating :

200 V

Technology :

Thin Film

Length :

3.5 mm

Mounting Style :

PCB Mount

Number of Terminations :

2

Size / Dimension :

0.055" Dia x 0.138" L (1.40mm x 3.50mm)

Diameter :

1.4 mm

Mounting Feature :

Surface Mount

Features :

Pulse Withstanding

Subcategory :

Resistors

Application :

GENERAL PURPOSE

Power (Watts) :

0.25W, 1/4W

Tolerance :

±1%

Package / Case :

MELF, 0204

Package Length :

3.5

Minimum Operating Temperature :

- 55 C

Number of Terminals :

2

Resistor Type :

FIXED RESISTOR

Height - Seated (Max) :

-

Packing Method :

TR, Embossed Plastic, 7 Inch

Rated Power Dissipation (P) :

0.25

Power Rating :

250 mW (1/4 W)

Resistance :

47 Ohms

Temperature Coefficient :

±50ppm/°C

Product Status :

Active

Construction :

Cylindrical

Operating Temperature :

-55°C ~ 155°C

Size Code :

204

Terminal Shape :

WRAPAROUND

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Product Type :

MELF Resistors

Series :

MLF

Composition :

Thin Film
