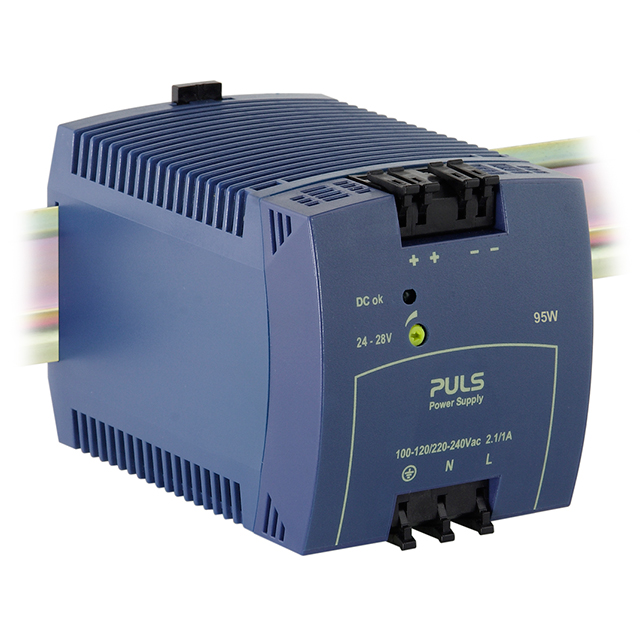

ML95.100

Manufacturer :

PULS

Product Category :

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Min Output Voltage :

24V

Total Power Output-Max :

95W

Number of Terminations :

8

Type :

Enclosed

Series :

MiniLine (95W)

Terminal Position :

UNSPECIFIED

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Applications :

ITE (Commercial)

Max Input Voltage :

120V

Current - Output (Max) :

3.95A

Weight :

360g

Mounting Type :

DIN Rail

RoHS Status :

RoHS Compliant

Feature :

Adjustable Output, DC Input Capable, IP20

Moisture Sensitivity Level (MSL) :

Not Applicable

Additional Feature :

ALSO OPERATES WITH DC SUPPLY VOLTAGE RANGES FROM 220V TO 375V

Mount :

DIN Rail

Trim/Adjustable Output :

yes

Factory Lead Time :

2 Weeks

Voltage - Input :

85V~132VAC 184V~264VAC

Max Output Voltage :

28V

Efficiency :

90%

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Outputs :

1

Output Voltage :

24.5V

Output Current :

3.95A

JESD-30 Code :

R-PXMA-X8

Power (Watts) :

95W

Operating Temperature :

0°C~70°C With Derating

Terminal Form :

UNSPECIFIED

Min Input Voltage :

100V

Size / Dimension :

4.06Lx2.87W x 2.95 H 103.0mmx73.0mmx75.0mm

Number of Functions :

1

Input Voltage-Nom :

100V

Depth :

75mm
