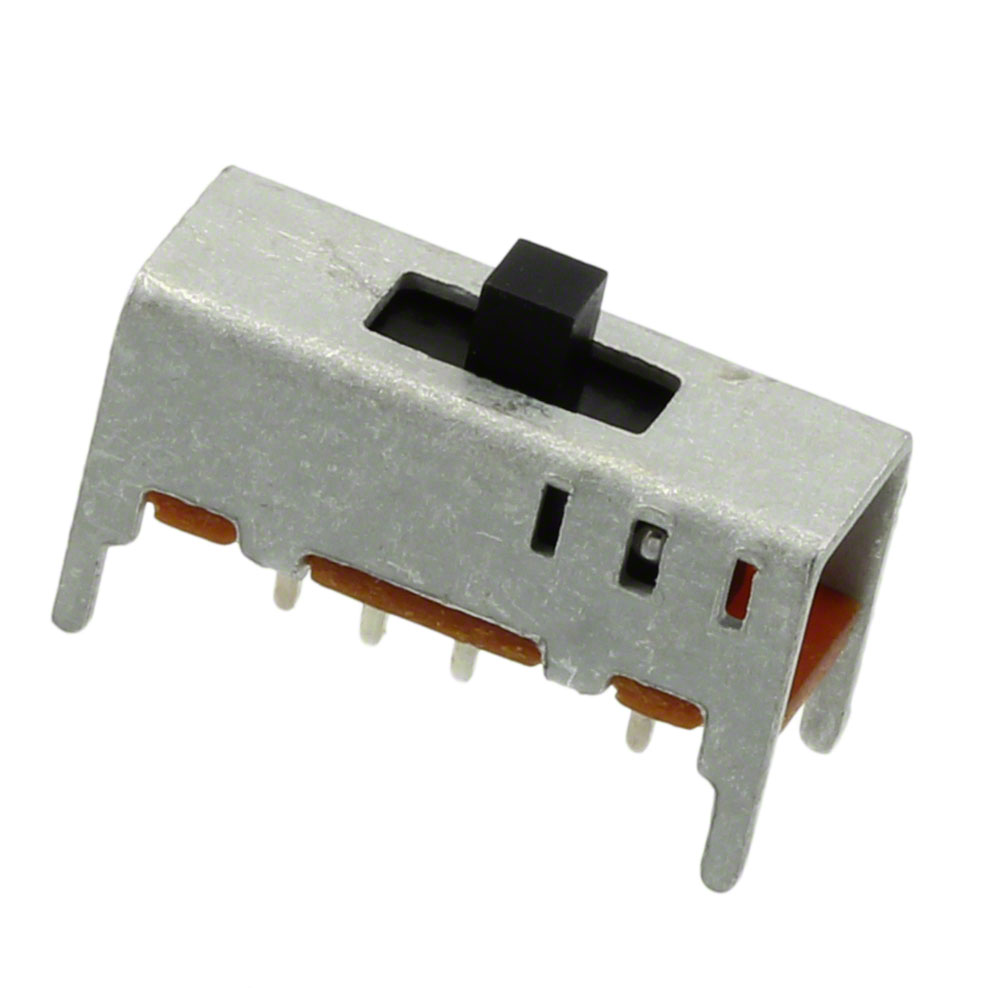

MFS101EA-Z
Or copy the link below:
- Mfr.Part #
- MFS101EA-Z
- Manufacturer
- Nidec Copal Electronics
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SP3T 2A 30V
- Stock
- 128
- In Stock ：
- 128
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nidec Copal Electronics
- Product Category :
- Voltage - Rated DC :
- 30V
- Reach Compliance Code :
- Unknown
- ECCN Code :
- EAR99
- Operating Force :
- 150/250gf
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated AC :
- 30V
- Contact (DC) Max Rating R Load :
- .3A@30VDC
- Body Breadth :
- 5.8 mm
- Switch Function :
- On-On-On
- Operating Temperature :
- -10°C~70°C
- Series :
- MFS
- Contact Current(AC)-Max :
- 2A
- Actuator Type :
- Standard
- Body Length or Diameter :
- 14.8mm
- Circuit :
- SP3T
- Actuator Length :
- 2.00mm
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- HTS Code :
- 8536.50.90.55
- Current Rating (Amps) :
- 2A AC 300mA DC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Style :
- PC Pin
- Termination :
- PC Pin
- Factory Lead Time :
- 9 Weeks
- Electrical Life :
- 5,000 Cycles
- Contact Current(DC)-Max :
- 0.3A
- Current Rating :
- 2A
- Contact (AC) Max Rating R Load :
- 2A@30VAC
- Switch Type :
- SNAP ACTING/LIMIT SWITCH
- Contact Timing :
- NOT SPECIFIED
- Body Height :
- 5.8mm
- Published :
- 2016
- Packaging :
- Bulk
- Datasheets
- MFS101EA-Z
MFS101EA-Z datasheet pdf and Slide Switches product details from Nidec Copal Electronics stock available at
