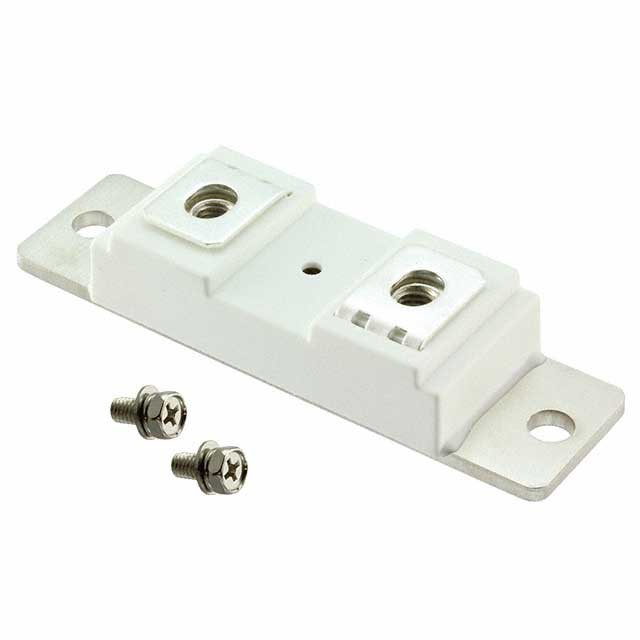

MF200K06F3-BP
Or copy the link below:
- Mfr.Part #
- MF200K06F3-BP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- F3 Module
- Datasheet
- Download
- Description
- DIODE MODULE GP 600V 100A F3
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Diodes - Rectifiers - Arrays
- HTS Code :
- 8541.10.00.80
- Published :
- 2008
- Rep Pk Reverse Voltage-Max :
- 600V
- ECCN Code :
- EAR99
- Application :
- ULTRA FAST SOFT RECOVERY
- Reverse Recovery Time :
- 105ns
- JESD-30 Code :
- R-XUFM-X2
- Packaging :
- Bulk
- Power Dissipation-Max :
- 1400W
- Factory Lead Time :
- 12 Weeks
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Non-rep Pk Forward Current-Max :
- 2350A
- Number of Phases :
- 1
- Mounting Type :
- Chassis Mount
- Case Connection :
- CATHODE
- Package / Case :
- F3 Module
- Surface Mount :
- No
- Output Current-Max :
- 100A
- Number of Elements :
- 2
- Voltage - DC Reverse (Vr) (Max) :
- 600V
- Number of Terminations :
- 2
- Current - Average Rectified (Io) :
- 100A
- Diode Type :
- Standard
- Current - Reverse Leakage @ Vr :
- 500μA @ 600V
- RoHS Status :
- ROHS3 Compliant
- Reverse Current-Max :
- 500μA
- Terminal Form :
- UNSPECIFIED
- Diode Configuration :
- 1 Pair Common Anode
- Diode Element Material :
- SILICON
- Voltage - Forward (Vf) (Max) @ If :
- 1.15V @ 100A
- Operating Temperature - Junction :
- -40°C~150°C
- Terminal Position :
- UPPER
- Operating Temperature (Max) :
- 150°C
- Datasheets
- MF200K06F3-BP
Standard Rectifier Diode 1 Pair Common Anode Fast Recovery =< 500ns, > 200mA (Io) -40°C~150°C 2-Element F3 Module Chassis Mount
MF200K06F3-BP Overview
In order to ensure that no forward voltage is exceeded, a forward voltage of 500μA monitoring system should be used.100A is the maximum output voltage array can support.
MF200K06F3-BP Features
a forward voltage of 500μA
a forward voltage of 500μA
a maximum output voltage of 100A
MF200K06F3-BP Applications
There are a lot of Micro Commercial Co
MF200K06F3-BP applications of rectifier diode array.
- Rectifier for drives applications
- Crowbar applications
- Rectifiers for UBS
- Battery chargers
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
- General Rectification
