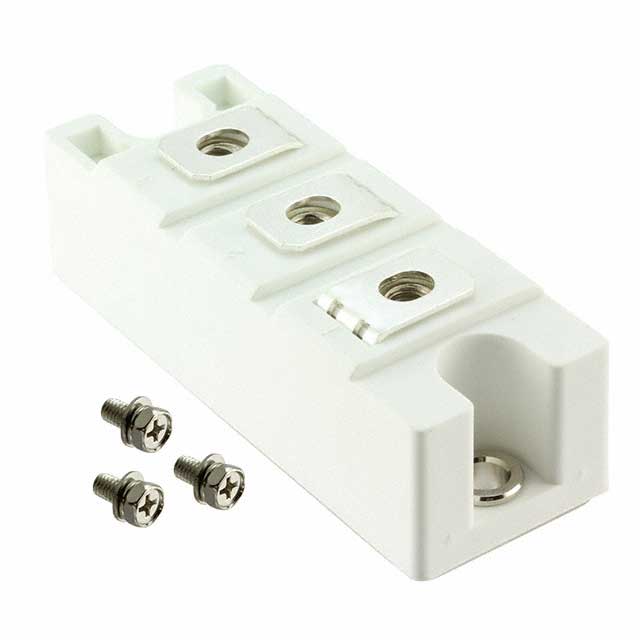

MF200K06F2-BP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Rectifiers - Arrays

ECCN Code :

EAR99

Package / Case :

F2 Module

Rep Pk Reverse Voltage-Max :

600V

Reverse Current-Max :

500μA

JESD-30 Code :

R-XUFM-X3

RoHS Status :

ROHS3 Compliant

Number of Terminations :

3

Number of Elements :

2

Diode Element Material :

SILICON

Current - Average Rectified (Io) :

200A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

UNSPECIFIED

Mounting Type :

Chassis Mount

Number of Phases :

1

Reverse Recovery Time :

140ns

Factory Lead Time :

12 Weeks

Operating Temperature - Junction :

-40°C~150°C

Application :

ULTRA FAST SOFT RECOVERY

Diode Type :

Standard

Terminal Position :

UPPER

Published :

2008

Current - Reverse Leakage @ Vr :

500μA @ 600V

Voltage - DC Reverse (Vr) (Max) :

600V

Packaging :

Bulk

Voltage - Forward (Vf) (Max) @ If :

1.6V @ 200A

Diode Configuration :

1 Pair Series Connection

Surface Mount :

No

Output Current-Max :

200A

Non-rep Pk Forward Current-Max :

2200A

Power Dissipation-Max :

690W

Operating Temperature (Max) :

150°C

HTS Code :

8541.10.00.80

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Case Connection :

Isolated
