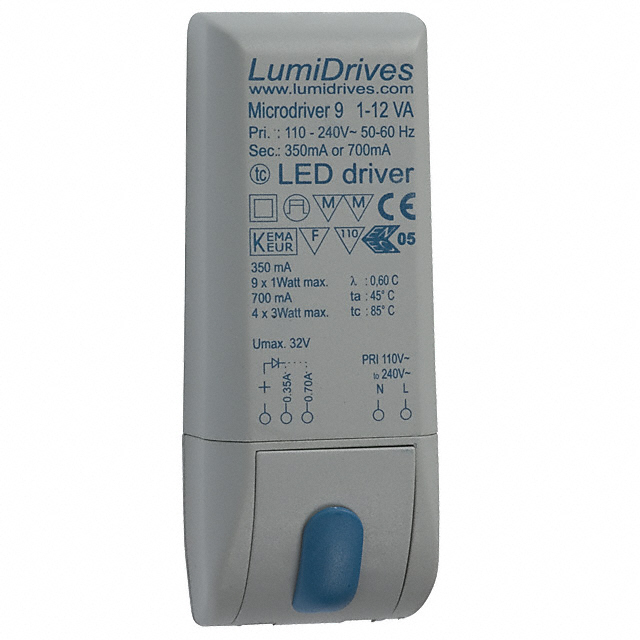

MDU93570

Manufacturer :

Dialight

Product Category :

Topology :

AC DC Converter

Min Operating Temperature :

-20°C

Weight :

70g

Mount :

Chassis Mount

Max Operating Temperature :

45°C

Voltage - Output 1 :

32V

Size / Dimension :

3.90Lx1.53W x 0.90 H 99.0mmx39.0mmx23.0mm

Mounting Type :

Chassis Mount

Termination Style :

Wire Leads

Lead Free :

Lead Free

Height :

22.86mm

Voltage - Input (Min) :

110VAC

RoHS Status :

RoHS Compliant

Power (Watts) :

22W

Length :

99.06mm

Current - Output (Max) :

700mA

Approval Agency :

CE, ENEC, UL

Feature :

OTP, OVP, SCP

Operating Temperature :

-20°C~45°C

Current - Output 1 :

700mA

Voltage - Output :

4V~32V

Voltage - Input (Max) :

240VAC

Type :

Constant Current

Output Current :

700mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2008

Width :

38.862mm

Max Power Dissipation :

22W

Number of Outputs :

1

Max Output Current :

700mA

Termination :

Wire Leads

Series :

MDU
