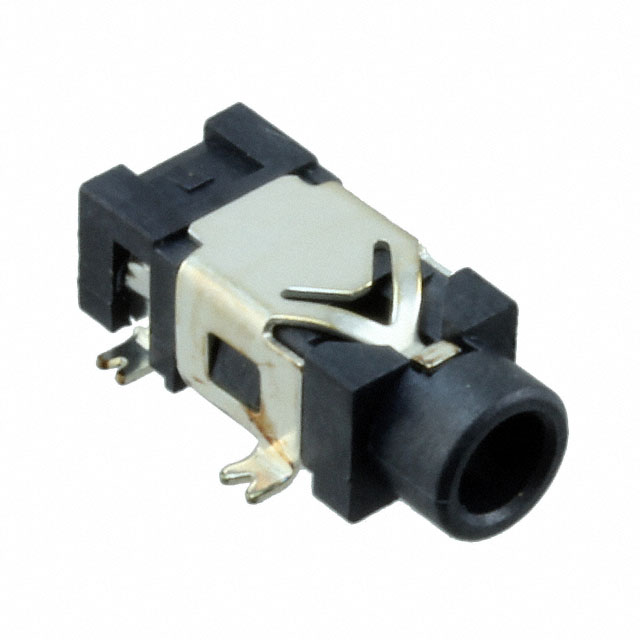

MDSMT2BRATRX
Or copy the link below:
- Mfr.Part #
- MDSMT2BRATRX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 2.5MM SMD R/A
- Stock
- 8,146
- In Stock ：
- 8,146
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Number of Poles :
- 3
- Actual Diameter :
- 0.102 (2.60mm)
- Orientation :
- RIGHT ANGLE
- Number of Terminations :
- 5
- Contact Material :
- COPPER ALLOY
- Length :
- 5mm
- Lead Free :
- Lead Free
- Contact Style :
- RND PIN-SKT
- Audio Type :
- PHONO
- Gender :
- FEMALE
- Number of Conductors :
- ONE
- Max Current Rating :
- 3A
- Option :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- IEC Conformance :
- No
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- MIL Conformance :
- No
- Mounting Type :
- Surface Mount, Right Angle
- Factory Lead Time :
- 12 Weeks
- Internal Switch(s) :
- Does Not Contain Switch
- Depth :
- 12.8mm
- Industry Recognized Mating Diameter :
- 2.50mm (0.094, 3/32, Sub Mini, Miniature) - Headphone
- Contact Material - Plating :
- Silver
- Number of Ports :
- 1
- DIN Conformance :
- No
- Feature :
- Board Guide
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -25°C~85°C
- Mount :
- Surface Mount
- Termination :
- Solder
- Rated Current (Signal) :
- 3A
- Current Rating :
- 3A
- Reliability :
- COMMERCIAL
- JESD-609 Code :
- e4
- Additional Feature :
- RoHS Compliant
- Series :
- MDSMT
- Housing Material :
- Thermoplastic
- Published :
- 2005
- Voltage - Rated :
- 250V
- Housing Color :
- Black
- Connector Type :
- Phone Jack
- Polarization Key :
- POLARIZED HOUSING
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Reference Standard :
- UL
- Shielding :
- Unshielded
- Datasheets
- MDSMT2BRATRX
