MDP-008
Or copy the link below:
- Mfr.Part #
- MDP-008
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description

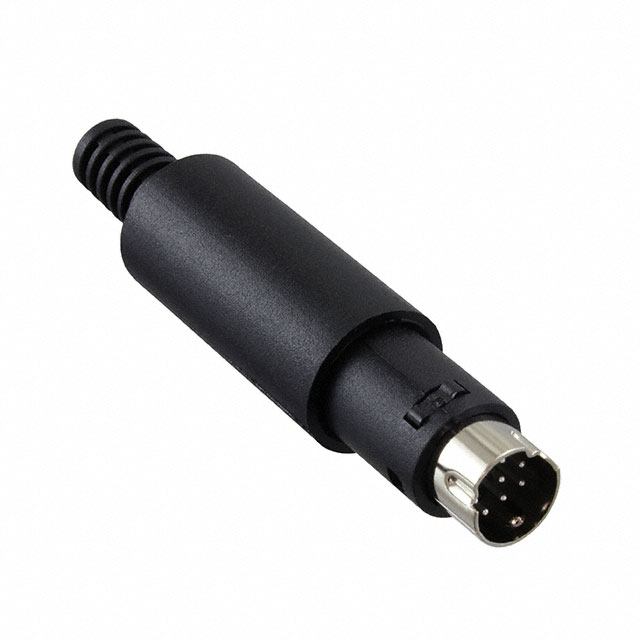

- CONN PLUG MALE MINI DIN 8P SILV
- Stock
- 859
- In Stock ：
- 859
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Circular Connector Assemblies
- Factory Lead Time :
- 9 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Insert Material :
- Polyamide (PA6), Nylon 6
- Mounting Option 1 :
- LOCKING
- Contact Finish - Mating :
- Silver
- Packaging :
- Tray
- Shell Material :
- Polyacrylonitrile Butadiene Styrene (ABS)
- Dielectric Withstanding Voltage :
- 500VAC V
- Material Flammability Rating :
- UL94 V-0
- Polarization Key :
- POLAR PIN POSITION
- Shell Size - Insert :
- Mini DIN
- RoHS Status :
- ROHS3 Compliant
- Insertion Force-Max :
- 44.0352 N
- Number of Ports :
- 1
- Orientation :
- Keyed
- Durability :
- 5000 Cycles
- Shell Finish :
- Tin
- Operating Temperature :
- -25°C~70°C
- Connector Type :
- Plug, Male Pins
- Series :
- MDP
- Insulation Resistance :
- 500000000Ohm
- DIN Conformance :
- yes
- Backshell Material, Plating :
- Ethylene Vinyl Acetate (EVA)
- Applications :
- Audio, Video
- Fastening Type :
- Push-Pull
- Color :
- Black
- Shielding :
- Shielded
- Reference Standard :
- UL, CSA
- Contact Resistance :
- 20mOhm
- Contact Material :
- Brass
- Feature :
- Backshell, Strain Relief
- Total Number of Contacts :
- 8
- Current Rating (Amps) :
- 1A
- Reliability :
- COMMERCIAL
- Number of Positions :
- 8
- Voltage - Rated :
- 100VAC 12VDC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Style :
- RND PIN-SKT
- Datasheets
- MDP-008
MDP-008 Documents
Plug, Male Pins Polyacrylonitrile Butadiene Styrene (ABS) Free Hanging (In-Line) 8 Positions Silver Tin Tray Keyed Push-Pull
MDP-008 Overview
The packaging contains Plug, Male Pins.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Tray.Product number MDP belongs to the MDP Series.In many ways, it is more powerful due to its Backshell, Strain Relief feature.This device operates at a temperature of -25°C~70°C.
MDP-008 Features
MDP series
MDP-008 Applications
There are a lot of Adam Tech
MDP-008 Circular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
