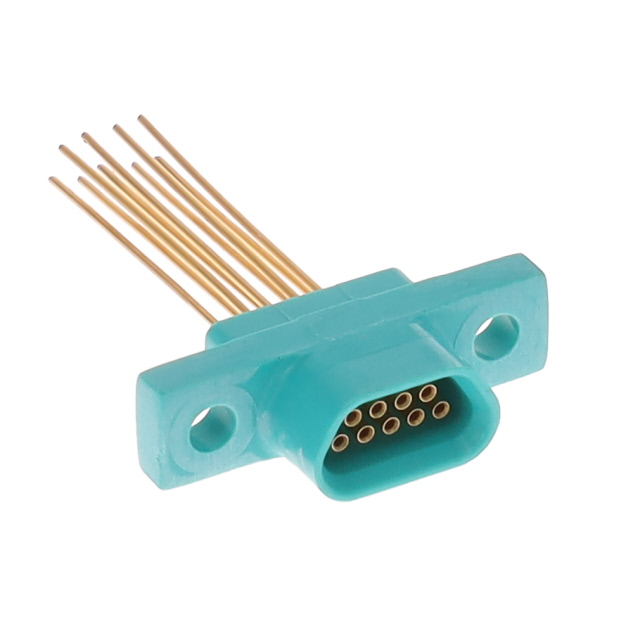

MDB1-9SL1
Or copy the link below:
- Mfr.Part #
- MDB1-9SL1
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D RCPT 9POS PNL MNT
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Mating Contact Pitch :
- 0.05 inch
- Mounting Angle :
- Straight
- Reliability :
- COMMERCIAL
- Backset Spacing :
- --
- Current Rating (Amps) :
- 3A
- Current Rating :
- 3A
- Max Operating Temperature :
- 149 °C
- Published :
- 2006
- Number of Positions :
- 9
- Termination :
- Wire Leads
- Max Current Rating :
- 3A
- Contact Plating :
- Gold
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Contact Type :
- Signal
- Wire Gauge :
- --
- Connector Type :
- Receptacle, Female Sockets
- Termination Style :
- Crimp
- Ingress Protection :
- --
- Package :
- -
- Voltage Rating :
- --
- Mounting Type :
- Panel Mount
- Packaging :
- --
- Contact Finish Thickness :
- --
- Product Category :
- D-Sub Micro-D Connectors
- Brand :
- ITT Cannon
- Connector Style :
- D-Type, Micro-D
- Material Flammability Rating :
- --
- Contact Finish :
- Gold
- Number of Pins :
- 9
- Shell Material, Finish :
- --
- Body/Shell Style :
- PLUG
- Mounting Style :
- CABLE
- Min Operating Temperature :
- -55 °C
- Product Type :
- Micro-D D-Sub Connectors
- Gender :
- FEMALE
- Number of Rows :
- 2
- Factory Lead Time :
- 15 Weeks
- Manufacturer :
- ITT Cannon
- Housing Material :
- Diallyl Phthalate (DAP), Glass Filled
- RoHS :
- Non-Compliant
- Features :
- --
- Body Length or Diameter :
- 0.788 inch
- Color :
- --
- Product Status :
- Active
- Cable Length :
- 12mm
- Total Number of Contacts :
- 9
- Connector Type A :
- D-Sub
- Operating Temperature :
- -55°C~150°C
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Wire/Cable Gauge :
- 25 AWG
- Contact Design :
- PREASSEM CONN
- Flange Feature :
- Housing/Shell (Unthreaded)
- Contact Form :
- --
- Contact Material :
- COPPER ALLOY
- Series :
- MDB
- Reach Compliance Code :
- Compliant
- Datasheets
- MDB1-9SL1
MDB1-9SL1 Documents
MDB Series D-Type, Micro-D Receptacle, Female Sockets 9-Position Female Signal Wire Leads 0.050 Pitch x 0.043 Row to Row Panel Mount Copper Alloy Gold --
MDB1-9SL1 Overview
Packaging is in the form of Receptacle, Female Sockets.The mounting type of the device is Panel Mount.A -- case is used to package the product.A product of the MDB Series, it belongs to the range of products of that series.9 pins are on the device.A temperature below 149 °C is best for using it.The device must run at -55 °C degrees.-55°C~150°C Operating Temperature is the default operating temperature for the device.
MDB1-9SL1 Features
MDB series
MDB1-9SL1 Applications
There are a lot of ITT Cannon, LLC
MDB1-9SL1 D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
