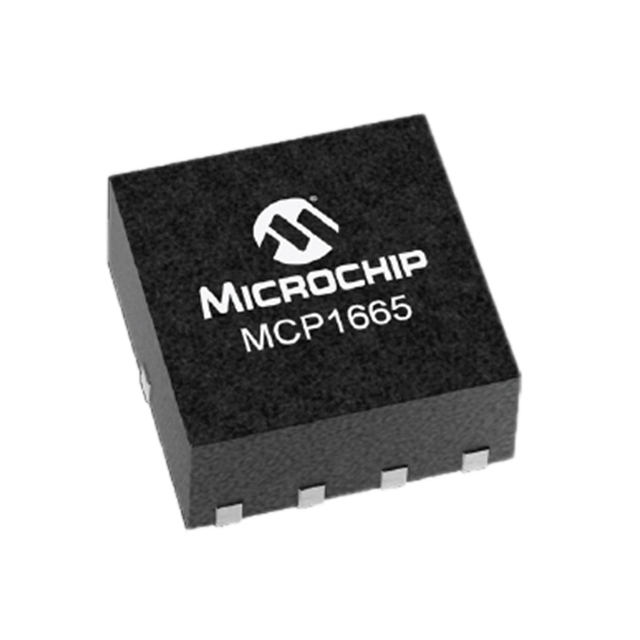

MCP1665T-E/MRA

Manufacturer :

Microchip Technology

Product Category :

Voltage Regulators - DC DC Switching Regulators

Output Type :

Adjustable

Base Part Number :

MCP1665

Additional Feature :

UVLO AND OVER VOLTAGE PROTECTION

Number of Outputs :

1

Minimum Operating Temperature :

- 40 C

Output Voltage-Max :

32 V

JESD-30 Code :

S-PQCC-N10

Product Status :

Active

Switching Frequency :

500kHz

Terminal Form :

J BEND

Output Current-Max :

1 A

HTS Code :

8542.39.00.01

Base Product Number :

MCP1665

Topology :

Boost

Voltage - Output (Max) :

32V

Temperature Grade :

Automotive

RoHS :

Non-Compliant

Synchronous Rectifier :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Switching Frequency-Max :

575 kHz

Quiescent Current :

0.4 uA

Maximum Operating Temperature :

+ 125 C

Mounting Style :

SMD/SMT

Switcher Configuration :

Boost

Schedule B :

8542390000

Analog IC - Other Type :

SWITCHING REGULATOR

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

4 Weeks

Package / Case :

10-VFQFN Exposed Pad

Packaging :

Tape and Reel (TR)

Reach Compliance Code :

Compliant

Seated Height-Max :

0.9 mm

ECCN Code :

EAR99

Height Seated (Max) :

0.9mm

Terminal Pitch :

0.5mm

Voltage - Input (Min) :

2.7V

Length :

2mm

Number of Terminals :

10

Package Shape :

Square

Voltage - Input (Max) :

5V

Mounting Type :

Surface Mount

Current - Output :

1A

Number of Functions :

1

Terminal Position :

QUAD

Frequency - Switching :

575kHz

Control Mode :

VOLTAGE-MODE

Supplier Device Package :

10-VQFN (2x2)

Function :

Step-Up

Input Voltage-Nom :

3.6V

MSL :

-

Lifecycle Status :

Production (Last Updated: 2 years ago)

Output Voltage :

32V

Voltage - Output (Min/Fixed) :

2.8V

Series :

--

Manufacturer :

Microchip Technology Inc

Surface Mount :

yes

Output Current :

3.6A

Number of Terminations :

10

Output Configuration :

Positive

Width :

2mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature :

-40°C~125°C TA

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Control Technique :

PULSE WIDTH MODULATION
