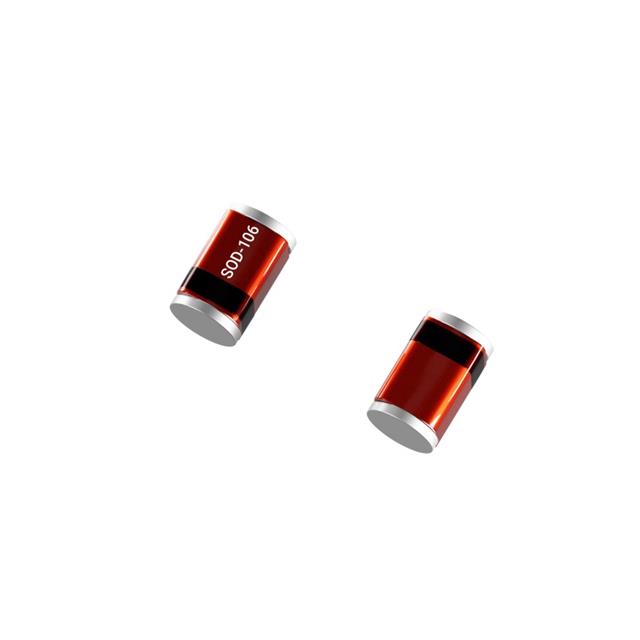

MCL103C

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Recovery Time :

10 ns

ECCN Code :

EAR99

Operating Temperature - Junction :

125°C Max

Peak Reflow Temperature (Cel) :

260

Max Reverse Voltage (DC) :

20V

Number of Terminations :

2

Min Operating Temperature :

-65°C

Max Surge Current :

15A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

125°C

Package / Case :

2-SMD, No Lead

Peak Reverse Current :

5μA

Terminal Finish :

Tin/Silver (Sn/Ag)

Lead Free :

Lead Free

Number of Pins :

2

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Power Dissipation :

400mW

Pin Count :

2

Element Configuration :

Single

Max Power Dissipation :

400mW

Radiation Hardening :

No

Mount :

Surface Mount

Terminal Form :

WRAP AROUND

Forward Current :

200mA

Number of Elements :

1

Current - Reverse Leakage @ Vr :

5µA @ 10V

Factory Lead Time :

13 Weeks

Average Rectified Current :

200mA

Published :

2016

Diode Type :

Schottky

Pbfree Code :

yes

Time@Peak Reflow Temperature-Max (s) :

40

Additional Feature :

LOW LEAKAGE CURRENT

Terminal Position :

END

Voltage - Forward (Vf) (Max) @ If :

600mV @ 200mA

HTS Code :

8541.10.00.70

Case Connection :

Isolated

Peak Non-Repetitive Surge Current :

15A

JESD-609 Code :

e2

RoHS Status :

ROHS3 Compliant

Diode Element Material :

SILICON

Max Reverse Leakage Current :

5μA

Forward Voltage :

600mV

Max Repetitive Reverse Voltage (Vrrm) :

20V

Speed :

Small Signal =< 200mA (Io), Any Speed

Series :

Automotive, AEC-Q101
