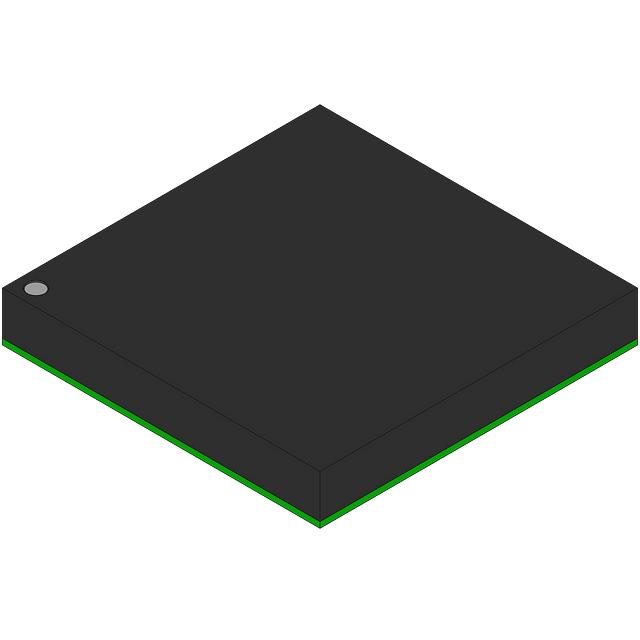

MCIMX515CJM6C

Manufacturer :

NXP Semiconductors

Product Category :

Microcontrollers

Terminal Position :

BOTTOM

JESD-30 Code :

S-PBGA-B529

Series :

i.MX51

Core Processor :

ARM® Cortex®-A8

Published :

2008

Time@Peak Reflow Temperature-Max (s) :

40

RoHS Status :

ROHS3 Compliant

Supply Voltage-Min (Vsup) :

0.95V

RAM Controllers :

LPDDR, DDR2

Length :

19mm

HTS Code :

8542.31.00.01

Factory Lead Time :

15 Weeks

Speed :

600MHz

Additional Interfaces :

1-Wire, AC'97, I2C, I2S, MMC/SD, SPI, SSI, UART

Number of Terminations :

529

Operating Temperature :

-40°C~95°C TC

Height Seated (Max) :

1.6mm

Peak Reflow Temperature (Cel) :

260

Package / Case :

529-LFBGA

Terminal Pitch :

0.8mm

Terminal Form :

Ball

Supply Voltage :

1V

Packaging :

Tray

Ethernet :

10/100Mbps (1)

Security Features :

ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC

Power Supplies :

1.2V

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR CIRCUIT

Base Part Number :

MCIMX515

Graphics Acceleration :

yes

Surface Mount :

yes

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Supply Voltage-Max (Vsup) :

1.1V

Terminal Finish :

Tin/Silver/Copper - with Nickel barrier

Co-Processors/DSP :

Multimedia; NEON™ SIMD

Qualification Status :

Not Qualified

Number of Cores/Bus Width :

1 Core 32-Bit

USB :

USB 2.0 (3), USB 2.0 + PHY (1)

ECCN Code :

5A992

Voltage - I/O :

1.2V 1.875V 2.775V 3.0V

Display & Interface Controllers :

Keypad, LCD
