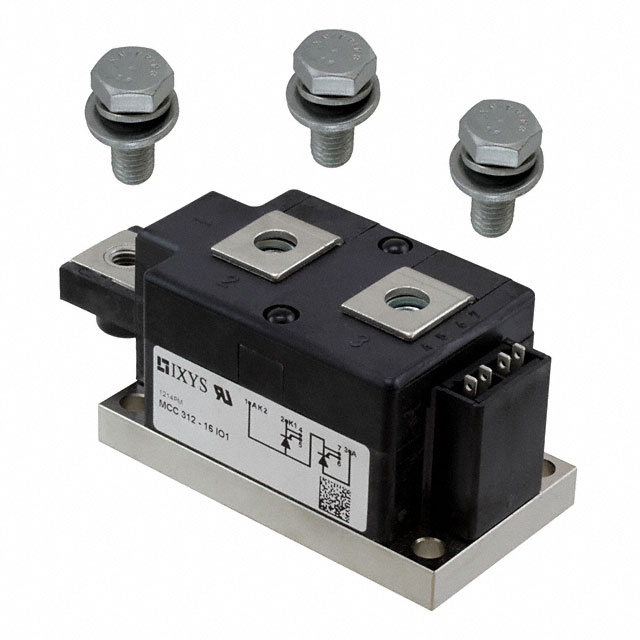

MCC312-16IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

Trigger Device Type :

SCR

Terminal Position :

UPPER

Operating Temperature :

-40°C~140°C TJ

Number of SCRs, Diodes :

2 SCRs

Reverse Voltage :

1.6kV

Technology :

Si

Height :

49mm

Pbfree Code :

yes

Radiation Hardening :

No

Current - Hold (Ih) (Max) :

150mA

Voltage - Gate Trigger (Vgt) (Max) :

2V

Current - Gate Trigger (Igt) (Max) :

150mA

Circuit :

SCR Doubler w/ aux Cathode

Current - Non Rep. Surge 50, 60Hz (Itsm) :

9200A 10100A

Repetitive Peak Off-state Voltage :

1600V

Number of Terminals :

7

Brand :

IXYS

RMS Current (Irms) :

520A

Product Category :

Discrete Semiconductor Modules

Current Rating :

1.04kA

Current - On State (It (RMS)) (Max) :

520A

Package / Case :

Y1-CU

Package Type :

Y1 CU

Configuration :

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Max Repetitive Reverse Voltage (Vrrm) :

1.6kV

Minimum Operating Temperature :

-40 °C

Mounting Type :

Chassis Mount

Type :

Phase Leg

Mounting Style :

Screw Mounts

Product Type :

Discrete Semiconductor Modules

Voltage - Rated DC :

1.6kV

Series :

--

Case Connection :

Isolated

Desc. of Quick-Connects :

2G-2GR

HTS Code :

8541.30.00.80

Reach Compliance Code :

Compliant

Non-Repetitive Pk On-state Cur :

9800 A

Pin Count :

7

Leakage Current (Max) :

40mA

Repetitive Peak Reverse Voltage :

1600V

Vf - Forward Voltage :

1.32 V

Length :

115mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Product Status :

Active

Holding Current-Max :

150 mA

Voltage - Off State :

1.6kV

DC Gate Trigger Voltage-Max :

2 V

Manufacturer :

IXYS

Factory Lead Time :

28 Weeks

Maximum Operating Temperature :

+140 °C

Additional Feature :

UL RECOGNIZED

DC Gate Trigger Current-Max :

150 mA

Structure :

Series Connection - All SCRs

JESD-30 Code :

R-XUFM-X7

Lead Free :

Lead Free

RoHS :

Details

Number of Pins :

7

Base Product Number :

MCC312

Product :

Thyristor Power Modules

Number of Elements :

2

Terminal Form :

UNSPECIFIED

Width :

50mm

Dimensions :

115 x 50 x 49mm

Packaging :

Bulk

Mount :

Chassis Mount, Panel, Screw

On-State Current-Max :

320000A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Hold Current :

150mA

Number of Terminations :

7

Base Part Number :

MC*312

RoHS Status :

ROHS3 Compliant

RMS On-state Current-Max :

520 A

Current - On State (It (AV)) (Max) :

320A

Qualification Status :

Not Qualified

Desc. of Screw Terminals :

A-K-AK

Surface Mount :

No

Package Shape :

RECTANGULAR

Published :

2002

Package :

Bulk
