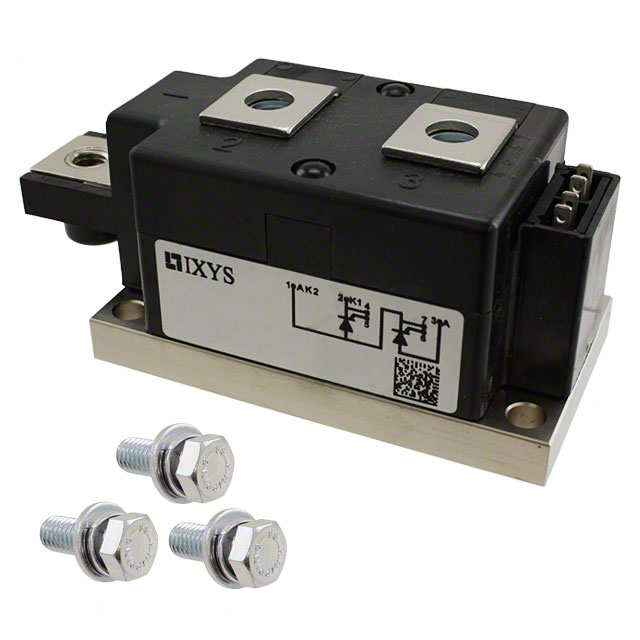

MCC255-18IO1

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs - Modules

Min Operating Temperature :

-40 °C

Surface Mount :

No

Leakage Current (Max) :

40mA

Pbfree Code :

yes

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Repetitive Peak Reverse Voltage :

1800V

Voltage - Off State :

1.8kV

Number of Terminations :

7

Max Operating Temperature :

130 °C

Holding Current-Max :

150 mA

Series :

--

Structure :

Series Connection - All SCRs

Package Shape :

RECTANGULAR

Technology :

Si

On-State Current-Max :

250000A

RMS Current (Irms) :

450A

Qualification Status :

Not Qualified

Product :

Thyristor Power Modules

Mounting Style :

Screw Mount

Desc. of Quick-Connects :

2G-2GR

Base Part Number :

MC*255

Published :

2009

RoHS Status :

ROHS3 Compliant

RMS On-state Current-Max :

450 A

Number of Terminals :

7

Current - Non Rep. Surge 50, 60Hz (Itsm) :

9000A 9600A

DC Gate Trigger Current-Max :

150 mA

Brand :

IXYS

Current - Hold (Ih) (Max) :

150mA

RoHS :

Compliant

Number of Elements :

2

Mounting Type :

Chassis Mount

Number of SCRs, Diodes :

2 SCRs

Additional Feature :

UL RECOGNIZED

Hold Current :

150mA

Current - On State (It (AV)) (Max) :

250A

DC Gate Trigger Voltage-Max :

2 V

Non-Repetitive Pk On-state Cur :

9600 A

Package :

Bulk

Number of Pins :

7

Operating Temperature :

-40°C~140°C TJ

Trigger Device Type :

SCR

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - On State (It (RMS)) (Max) :

450A

Terminal Position :

UPPER

Base Product Number :

MCC255

Configuration :

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Package / Case :

Y1-CU

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

28 Weeks

Repetitive Peak Off-state Voltage :

1800V

Desc. of Screw Terminals :

A-K-AK

Voltage - Gate Trigger (Vgt) (Max) :

2V

HTS Code :

8541.30.00.80

JESD-30 Code :

R-XUFM-X7

Reach Compliance Code :

Compliant

Case Connection :

Isolated

Type :

Thyristor

Current - Gate Trigger (Igt) (Max) :

150mA

Manufacturer :

IXYS

Packaging :

Bulk

Terminal Form :

UNSPECIFIED

Mount :

Chassis Mount, Screw

Product Status :

Active

Product Category :

Discrete Semiconductor Modules

Product Type :

Discrete Semiconductor Modules

Lead Free :

Lead Free
