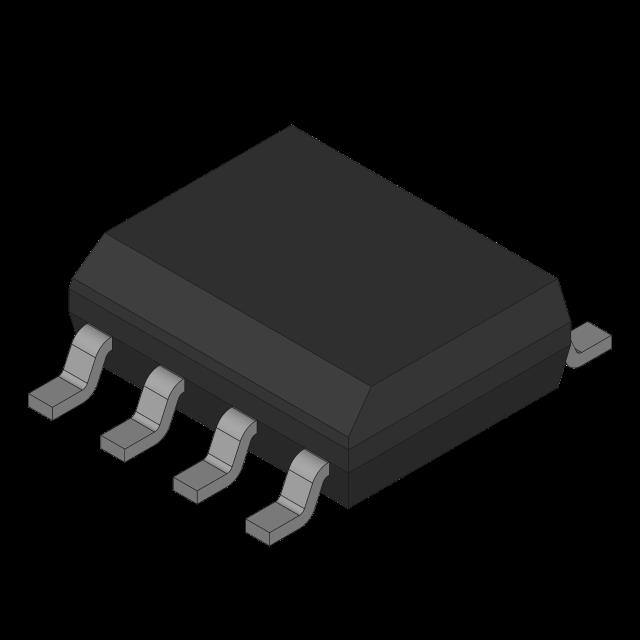

MC908QT4ACDWE

Manufacturer :

Freescale Semiconductor

Product Category :

Microcontrollers

Supply Voltage :

5V

PWM Channels :

yes

Program Memory Type :

Flash

JESD-609 Code :

e3

ECCN Code :

3A991.A.2

Number of I/O :

5

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER

Bit Size :

8

Peak Reflow Temperature (Cel) :

260

RoHS Status :

ROHS3 Compliant

Speed :

8MHz

Package / Case :

8-SOIC (0.209, 5.30mm Width)

Oscillator Type :

Internal

Terminal Pitch :

1.27mm

Number of Terminations :

8

Core Size :

8-Bit

Voltage - Supply (Vcc/Vdd) :

2.7V~5.5V

Surface Mount :

yes

DMA Channels :

No

Terminal Finish :

Matte Tin (Sn)

DAC Channels :

No

Operating Temperature :

-40°C~85°C TA

JESD-30 Code :

R-PDSO-G8

Base Part Number :

MC908QT4

Terminal Form :

Gull wing

Clock Frequency :

32MHz

RAM Size :

128 x 8

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Has ADC :

yes

Time@Peak Reflow Temperature-Max (s) :

40

Packaging :

Tube

Published :

2006

Series :

HC08

Program Memory Size :

4KB 4K x 8

Qualification Status :

Not Qualified

Peripherals :

LVD, POR, PWM

Data Converter :

A/D 6x10b

Additional Feature :

ALSO OPERATES AT 3V SUPPLY AT 4 MHZ

Mounting Type :

Surface Mount

Terminal Position :

Dual
