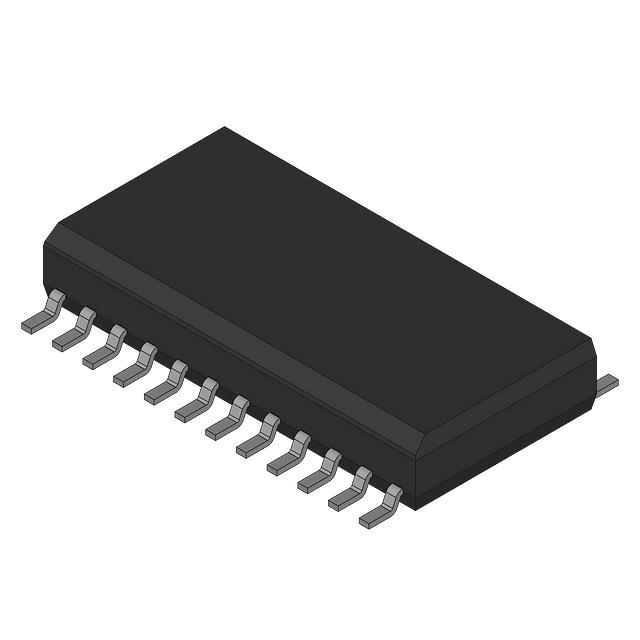

MC74HC646DW

Manufacturer :

onsemi

Product Category :

Buffers, Drivers, Receivers, Transceivers

HTS Code :

8542.39.00.01

Product Status :

Active

Series :

74HC

Number of Elements :

1

Package Shape :

RECTANGULAR

Reach Compliance Code :

Unknown

Base Product Number :

74HC646

Number of Bits :

8

Technology :

CMOS

Temperature Grade :

Military

Terminal Pitch :

1.27 mm

Operating Temperature :

-55°C ~ 125°C (TA)

Length :

15.395 mm

Terminal Position :

Dual

Propagation Delay (tpd) :

66 ns

Pin Count :

24

Manufacturer :

Motorola Mobility LLC

Input Type :

-

Voltage - Supply :

2V ~ 6V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-30 Code :

R-PDSO-G24

Package :

Bulk

JESD-609 Code :

e0

Qualification Status :

Not Qualified

Logic Type :

Transceiver, Non-Inverting

Logic IC Type :

REGISTERED BUS TRANSCEIVER

Number of Terminals :

24

Supply Voltage-Max (Vsup) :

6 V

Number of Functions :

1

Terminal Finish :

Tin/Lead (Sn/Pb)

Seated Height-Max :

2.65 mm

Terminal Form :

Gull wing

Number of Ports :

2

Supply Voltage-Min (Vsup) :

2 V

Output Characteristics :

3-STATE

Current - Output High, Low :

7.8mA, 7.8mA

Family :

HC/UH

Output Polarity :

TRUE

Width :

7.5 mm

Output Type :

3-STATE

Additional Feature :

DIRECTION CONTROL; SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED OR REAL TIME DATA

Surface Mount :

yes

Pbfree Code :

No

Number of Bits per Element :

8
