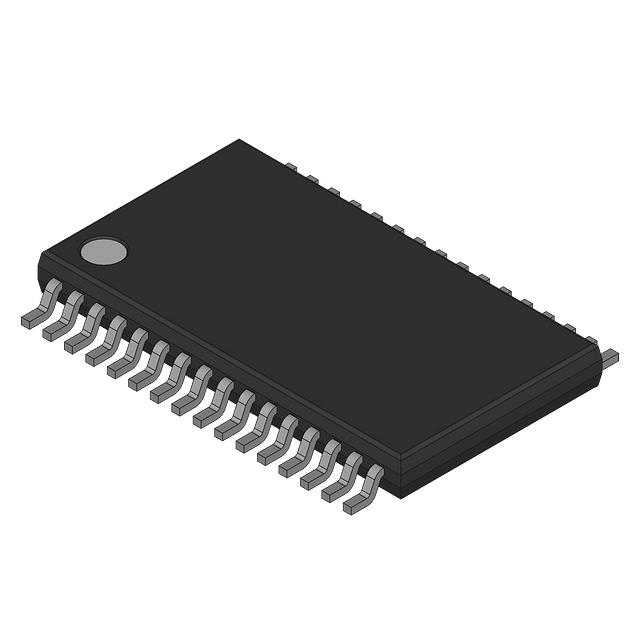

MC33879TEK

Manufacturer :

Freescale Semiconductor

Product Category :

Full Half-Bridge Drivers

Driver Number of Bits :

8

Terminal Position :

Dual

Voltage - Supply :

5.5V~26.5V

HTS Code :

8542.39.00.01

Surface Mount :

yes

JESD-30 Code :

R-PDSO-G32

Output Peak Current Limit-Nom :

1.2A

ECCN Code :

EAR99

Rds On (Typ) :

750m Ω

Length :

11mm

JESD-609 Code :

e3

Current - Peak Output :

1.2A

Supply Voltage :

5V

Power Supplies :

3.3/5V

Number of Functions :

1

Number of Terminations :

32

Output Current Flow Direction :

SINK

Turn Off Time :

100 µs

Package / Case :

32-BSSOP (0.295, 7.50mm Width) Exposed Pad

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Height Seated (Max) :

2.65mm

RoHS Status :

ROHS3 Compliant

Terminal Pitch :

0.65mm

Built-in Protections :

TRANSIENT; OVER VOLTAGE; UNDER VOLTAGE

Published :

2006

Width :

7.5mm

Qualification Status :

Not Qualified

Operating Temperature :

-40°C~125°C

Base Part Number :

MC33879

Time@Peak Reflow Temperature-Max (s) :

40

Turn On Time :

50 µs

Factory Lead Time :

12 Weeks

Packaging :

Tube

Terminal Finish :

MATTE TIN

Interface IC Type :

BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Terminal Form :

Gull wing
