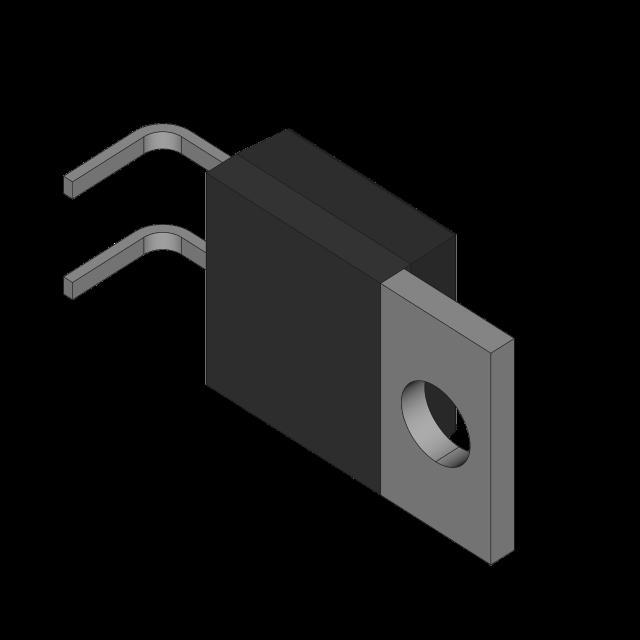

MBR735
Or copy the link below:
- Mfr.Part #
- MBR735
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- TO-220-2
- Datasheet
- Download
- Description
- RECTIFIER, SCHOTTKY, 7.5A, 35V,
- Stock
- 26,676
- In Stock ：
- 26,676
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Mounting Type :
- Through Hole
- Voltage - Rated DC :
- 45V
- Length :
- 10.29mm
- Current Rating :
- 7.5A
- Average Rectified Current :
- 7.5A
- Current - Reverse Leakage @ Vr :
- 100μA @ 35V
- REACH SVHC :
- No SVHC
- Published :
- 2009
- Output Current :
- 7.5A
- Number of Pins :
- 2
- Max Surge Current :
- 150A
- Element Configuration :
- Single
- Operating Temperature - Junction :
- -65°C~175°C
- Max Forward Surge Current (Ifsm) :
- 150A
- Factory Lead Time :
- 2 Weeks
- Peak Non-Repetitive Surge Current :
- 150A
- Current - Average Rectified (Io) :
- 7.5A
- Supplier Device Package :
- TO-220-2
- Weight :
- 4.535924g
- Forward Voltage :
- 840mV
- Peak Reverse Current :
- 100μA
- Max Reverse Voltage (DC) :
- 35V
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- SWITCHMODE™
- Width :
- 4.82mm
- Min Operating Temperature :
- -65°C
- Polarity :
- Standard
- Package / Case :
- TO-220-2
- Height :
- 15.75mm
- Max Operating Temperature :
- 175°C
- Base Part Number :
- MBR735
- Max Repetitive Reverse Voltage (Vrrm) :
- 35V
- Packaging :
- Tube
- Diode Type :
- Schottky
- RoHS Status :
- ROHS3 Compliant
- Forward Current :
- 7.5A
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Voltage - DC Reverse (Vr) (Max) :
- 35V
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Max Reverse Leakage Current :
- 100μA
- Contact Plating :
- Tin
- Voltage - Forward (Vf) (Max) @ If :
- 840mV @ 15A
- Datasheets
- MBR735
Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 840mV @ 15A -65°C~175°C 100μA @ 35V Tube TO-220-2 Through Hole
MBR735G Overview
With this device, you'll get a maximum reverse leakage current of zero volts.Devices with this rating have an average rectified current of 7.5A volts.7.5A is the maximum value of forward current.The fuse's current rating is 7.5A, which is the maximum current the fuse can handle for an indefinite time without deteriorating too much.There can be no surge current above 150A.Using the data chart, the peak reverse is 100μA in the datasheets.
MBR735G Features
a maximal reverse leakage current of 100μA volts
an average rectified current of 7.5A volts
a current rating of 7.5A
the peak reverse is 100μA
MBR735G Applications
There are a lot of ON Semiconductor
MBR735G applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
