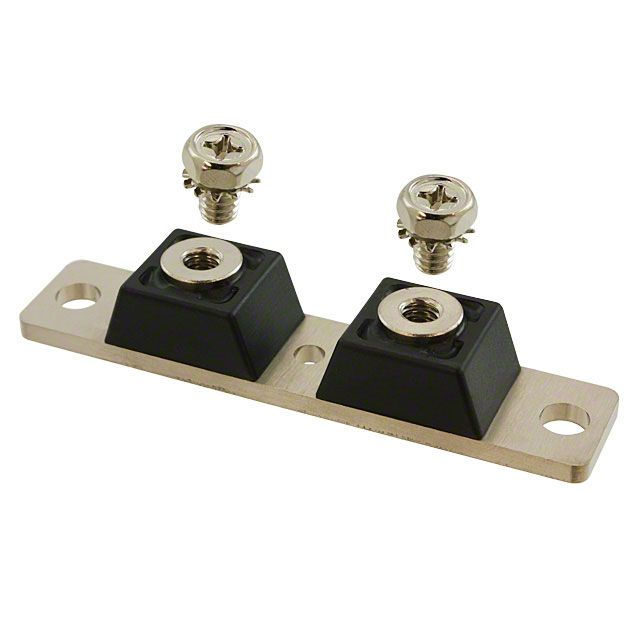

MBR40040CTR

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

Max Repetitive Reverse Voltage (Vrrm) :

40V

Max Reverse Leakage Current :

1μA

Factory Lead Time :

4 Weeks

Diode Configuration :

1 Pair Common Anode

Packaging :

Bulk

Current - Reverse Leakage @ Vr :

5mA @ 20V

Operating Temperature - Junction :

-55°C~150°C

Published :

2010

Diode Type :

Schottky

Max Reverse Voltage (DC) :

40V

Diode Element Material :

SILICON

Number of Terminations :

2

Terminal Form :

UNSPECIFIED

Mounting Type :

Chassis Mount

Element Configuration :

Common Anode

Package / Case :

Twin Tower

Voltage - Forward (Vf) (Max) @ If :

650mV @ 100A

Current - Average Rectified (Io) :

400A DC

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Max Surge Current :

3kA

Application :

Power

Mount :

Chassis Mount

Peak Reverse Current :

1A

Terminal Position :

UPPER

Output Current-Max :

200A

Number of Phases :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Elements :

2

Average Rectified Current :

400A

JESD-30 Code :

R-PUFM-X2

Max Operating Temperature :

175°C

Min Operating Temperature :

-40°C

HTS Code :

8541.10.00.80

RoHS Status :

RoHS Compliant

ECCN Code :

EAR99

Forward Current :

400A
