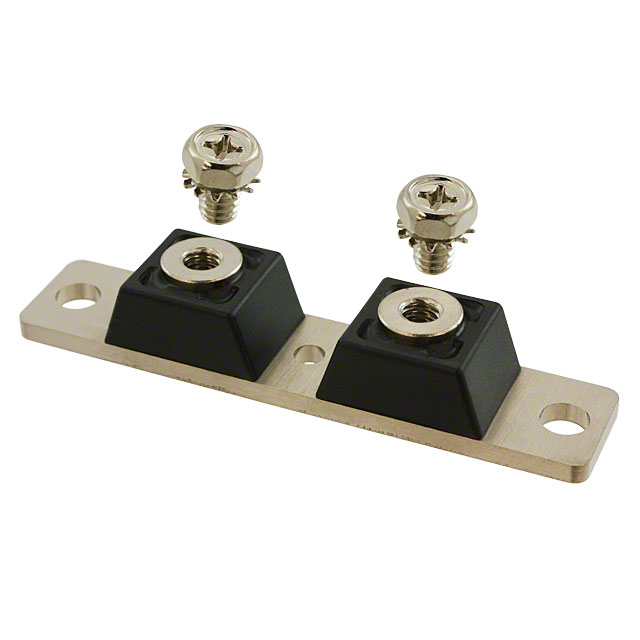

MBR12035 CTR

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

Voltage - Forward (Vf) (Max) @ If :

650mV @ 120A

ECCN Code :

EAR99

Current - Average Rectified (Io) :

120A DC

Operating Temperature (Max) :

150°C

Surface Mount :

No

Application :

Power

JESD-30 Code :

R-PUFM-X2

Mounting Type :

Chassis Mount

Reverse Current-Max :

1000μA

Voltage - DC Reverse (Vr) (Max) :

35V

Non-rep Pk Forward Current-Max :

800A

Rep Pk Reverse Voltage-Max :

35V

Operating Temperature - Junction :

-55°C~150°C

Terminal Form :

UNSPECIFIED

Number of Terminations :

2

Number of Phases :

1

Diode Configuration :

1 Pair Common Anode

Packaging :

Bulk

Package / Case :

Twin Tower

Number of Elements :

2

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8541.10.00.80

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Factory Lead Time :

4 Weeks

Output Current-Max :

60A

Pbfree Code :

yes

Terminal Position :

UPPER

Diode Type :

Schottky

Diode Element Material :

SILICON

Current - Reverse Leakage @ Vr :

3mA @ 20V
