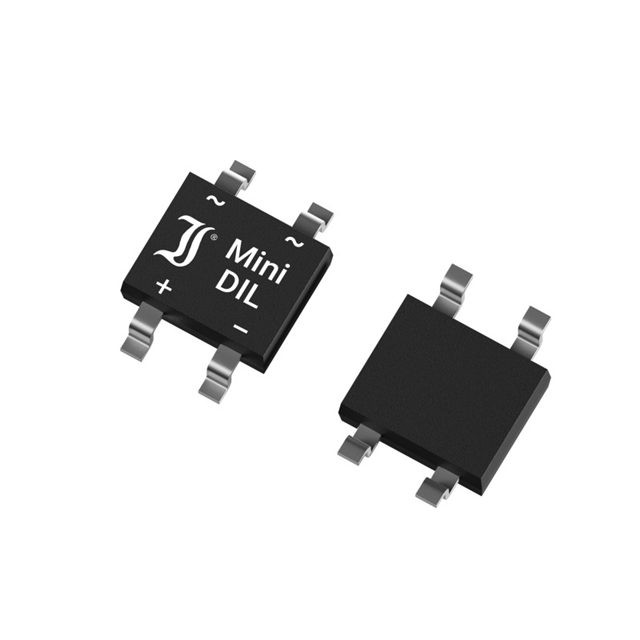

MB8S

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Base Part Number :

MB8

Reverse Voltage (DC) :

560V

Current - Average Rectified (Io) :

500mA

Tolerance :

5%

Peak Reverse Current :

5μA

Ratings :

AEC-Q200

Case Code (Imperial) :

0603

Height :

2.9mm

Package / Case :

TO-269AA, 4-BESOP

Forward Voltage :

1V

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Max Junction Temperature (Tj) :

150°C

REACH SVHC :

No SVHC

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Published :

2014

Supplier Device Package :

4-SOIC

Output Current :

500mA

Voltage - Rated DC :

800V

Diode Type :

Single Phase

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Average Rectified Current :

500mA

Number of Elements :

1

Reverse Voltage :

800V

Length :

1.6002mm

Max Surge Current :

35A

Forward Current :

500mA

Lead Free :

Lead Free

Operating Temperature :

-55°C~150°C TJ

Current Rating :

500mA

Max Operating Temperature :

150°C

Factory Lead Time :

12 Weeks

Radiation Hardening :

No

Peak Non-Repetitive Surge Current :

35A

Max Power Dissipation :

1.4W

Capacitance :

13pF

Mount :

Surface Mount

Min Operating Temperature :

-55°C

Case Code (Metric) :

1608

Max Forward Surge Current (Ifsm) :

35A

Thickness :

508μm

Number of Pins :

4

Voltage - Peak Reverse (Max) :

800V

Width :

4.2mm

Element Configuration :

Single

Voltage - Rated :

50V

Voltage - Forward (Vf) (Max) @ If :

1V @ 500mA

Current - Reverse Leakage @ Vr :

5μA @ 800V

Weight :

228mg

Max Repetitive Reverse Voltage (Vrrm) :

800V

Contact Plating :

Tin
