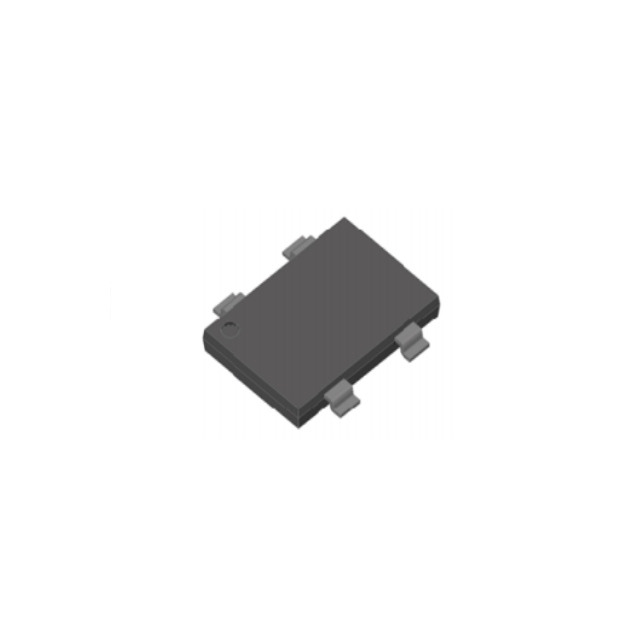

MB4F
Or copy the link below:
- Mfr.Part #
- MB4F
- Manufacturer
- Rectron USA
- Package / Case
- 4-SMD, Gull Wing
- Datasheet
- Download
- Description
- BRIDGE RECT GLASS 400V .8A MB-F
- Stock
- 45,100
- In Stock ：
- 45,100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Rectron USA
- Product Category :
- Diodes - Bridge Rectifiers
- Mounting Type :
- Surface Mount
- Voltage - Forward (Vf) (Max) @ If :
- 1.1V @ 800mA
- Operating Temperature :
- -55°C~150°C TJ
- Factory Lead Time :
- 6 Weeks
- Current - Average Rectified (Io) :
- 500mA
- Voltage - Peak Reverse (Max) :
- 400V
- Published :
- 2015
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Package / Case :
- 4-SMD, Gull Wing
- Diode Type :
- Single Phase
- Current - Reverse Leakage @ Vr :
- 5µA @ 400V
- Datasheets
- MB4F
Single Phase Bridge Rectifier Surface Mount -55°C~150°C TJ 5μA @ 400V 1.1V @ 800mA 4-SMD, Gull Wing Tape & Reel (TR)
MB4FTR Overview
Electronic components in the 4-SMD, Gull Wing package are basically the same.The normal operation of the device is ensured when it is operated at the temperature of 0 degrees Celsius.
MB4FTR Features
4-SMD, Gull Wing package
operating at a temperature of -55°C~150°C TJ
MB4FTR Applications
There are a lot of SMC Diode Solutions
MB4FTR applications of bridge rectifiers.
- Fuse-in-glass diodes design
- Electrically isolated aluminum case
- Motor controls – Low Voltage and Medium Voltage converters
- SCR power bridges for solid state starters
- SCR and diode based input rectifiers
- Crowbar systems for motor drives
- Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
- Transportation – Traction rectifiers and auxiliary rectifiers
- Inductive heating – Input rectifiers
- Welding systems – Input rectifiers and fast recovery diodes
