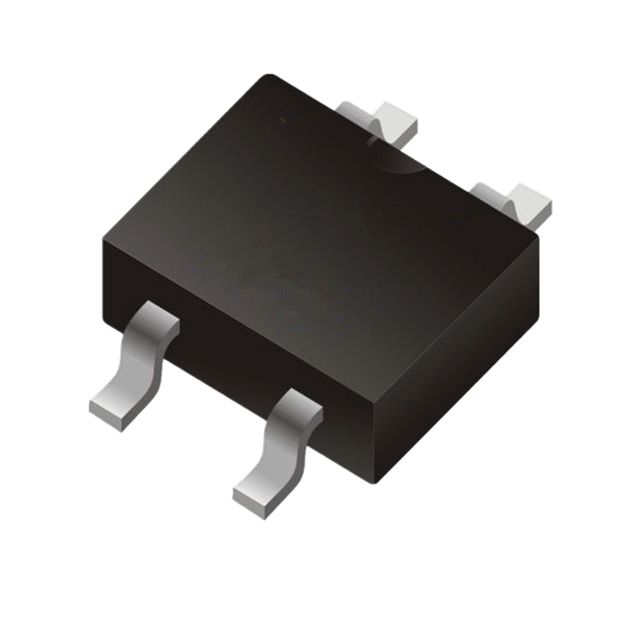

MB10F

Manufacturer :

MDD

Product Category :

Diodes - Bridge Rectifiers

Packaging :

Tape and Reel (TR)

Number of Phases :

1

Operating Temperature :

-55°C~150°C TJ

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 800mA

ECCN Code :

EAR99

JESD-30 Code :

R-PDSO-G4

Number of Elements :

4

Voltage - Peak Reverse (Max) :

1kV

Current - Reverse Leakage @ Vr :

5µA @ 1000V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

4

Factory Lead Time :

12 Weeks

Terminal Finish :

Matte Tin (Sn)

Reach Compliance Code :

not_compliant

Non-rep Pk Forward Current-Max :

30A

Terminal Position :

Dual

Diode Type :

Single Phase

Pbfree Code :

yes

Output Current-Max :

0.8A

Current - Average Rectified (Io) :

800mA

Published :

2000

Configuration :

BRIDGE, 4 ELEMENTS

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

JESD-609 Code :

e3

Surface Mount :

yes

Mounting Type :

Surface Mount

Package / Case :

4-SMD, Gull Wing

RoHS Status :

ROHS3 Compliant

Breakdown Voltage-Min :

1000V

Diode Element Material :

SILICON
