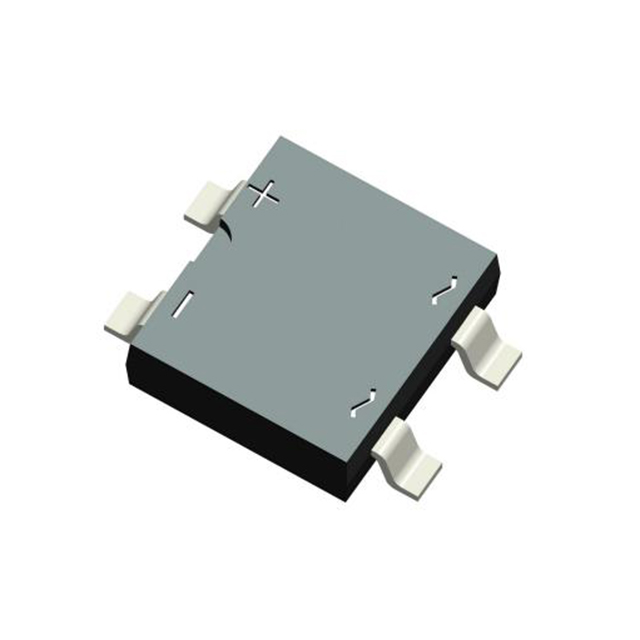

MB10F
Or copy the link below:
- Mfr.Part #
- MB10F
- Manufacturer
- SMC Diode Solutions
- Package / Case
- 4-SMD, Gull Wing
- Datasheet
- Download
- Description
- BRIDGE RECT 1PHASE 1KV 500MA MBF
- Stock
- 13,355
- In Stock ：
- 13,355
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SMC Diode Solutions
- Product Category :
- Diodes - Bridge Rectifiers
- Operating Temperature :
- -55°C~150°C TJ
- Voltage - Peak Reverse (Max) :
- 1kV
- Number of Elements :
- 4
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Breakdown Voltage-Min :
- 1000V
- Terminal Position :
- Dual
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Number of Phases :
- 1
- Published :
- 2000
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Finish :
- Matte Tin (Sn)
- Surface Mount :
- yes
- JESD-30 Code :
- R-PDSO-G4
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Diode Type :
- Single Phase
- Packaging :
- Tape and Reel (TR)
- JESD-609 Code :
- e3
- Factory Lead Time :
- 12 Weeks
- Package / Case :
- 4-SMD, Gull Wing
- Number of Terminations :
- 4
- Reach Compliance Code :
- not_compliant
- Output Current-Max :
- 0.8A
- Non-rep Pk Forward Current-Max :
- 30A
- Configuration :
- BRIDGE, 4 ELEMENTS
- Diode Element Material :
- SILICON
- Pbfree Code :
- yes
- Current - Average Rectified (Io) :
- 800mA
- Voltage - Forward (Vf) (Max) @ If :
- 1.1V @ 800mA
- Current - Reverse Leakage @ Vr :
- 5µA @ 1000V
- Datasheets
- MB10F
Single Phase Bridge Rectifier Surface Mount -55°C~150°C TJ 5μA @ 1000V 1.1V @ 800mA 4-Termination 1-Phase 4-SMD, Gull Wing Tape & Reel (TR)
MB10F-13 Overview
Basically, it is a 4-SMD, Gull Wing package-type electronic component.At -55°C~150°C TJ, it operates normally.In terms of output voltage, 0.8A is the maximum voltage that can be supported.
MB10F-13 Features
4-SMD, Gull Wing package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 0.8A
MB10F-13 Applications
There are a lot of Diodes Incorporated
MB10F-13 applications of bridge rectifiers.
- Electrically isolated aluminum case
- Motor controls – Low Voltage and Medium Voltage converters
- SCR power bridges for solid state starters
- SCR and diode based input rectifiers
- Crowbar systems for motor drives
- Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
- Transportation – Traction rectifiers and auxiliary rectifiers
- Inductive heating – Input rectifiers
- Welding systems – Input rectifiers and fast recovery diodes
- Uninterruptible power supplies – SCR transfer switches and input rectifiers
